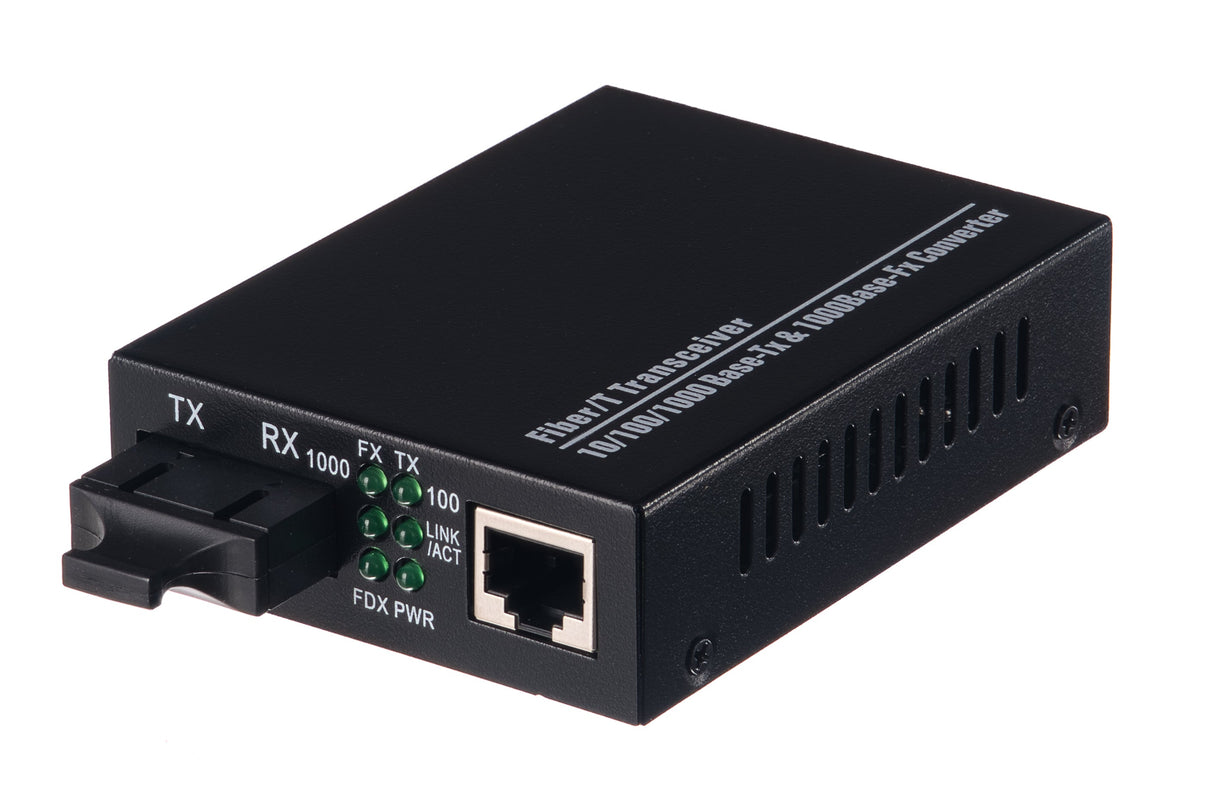

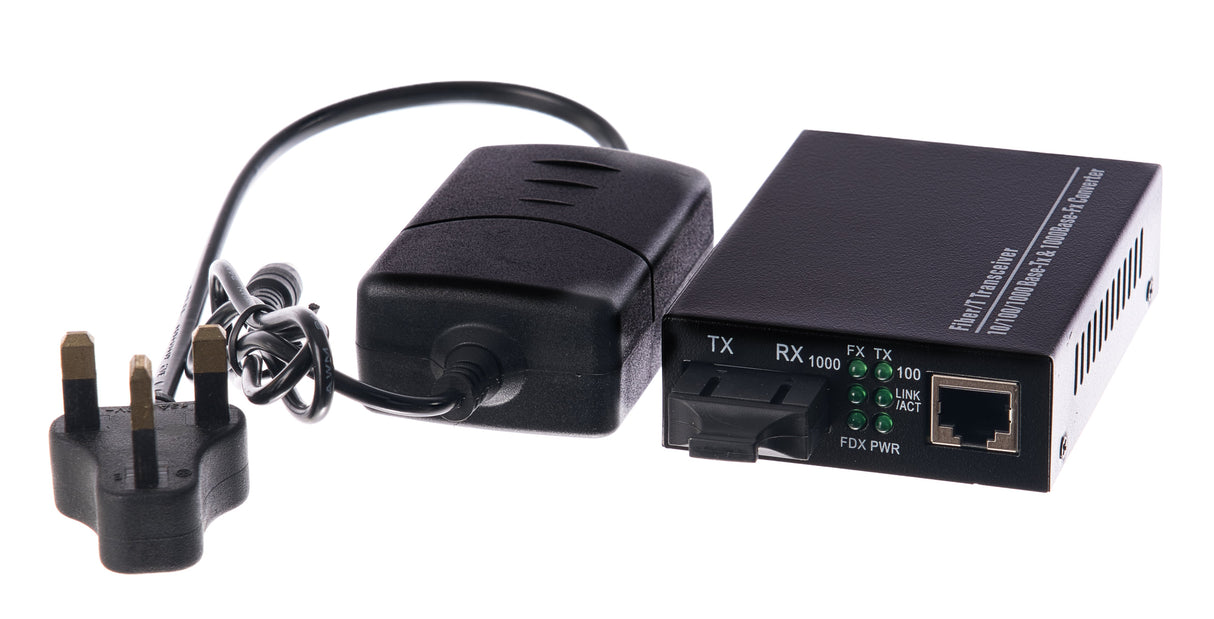

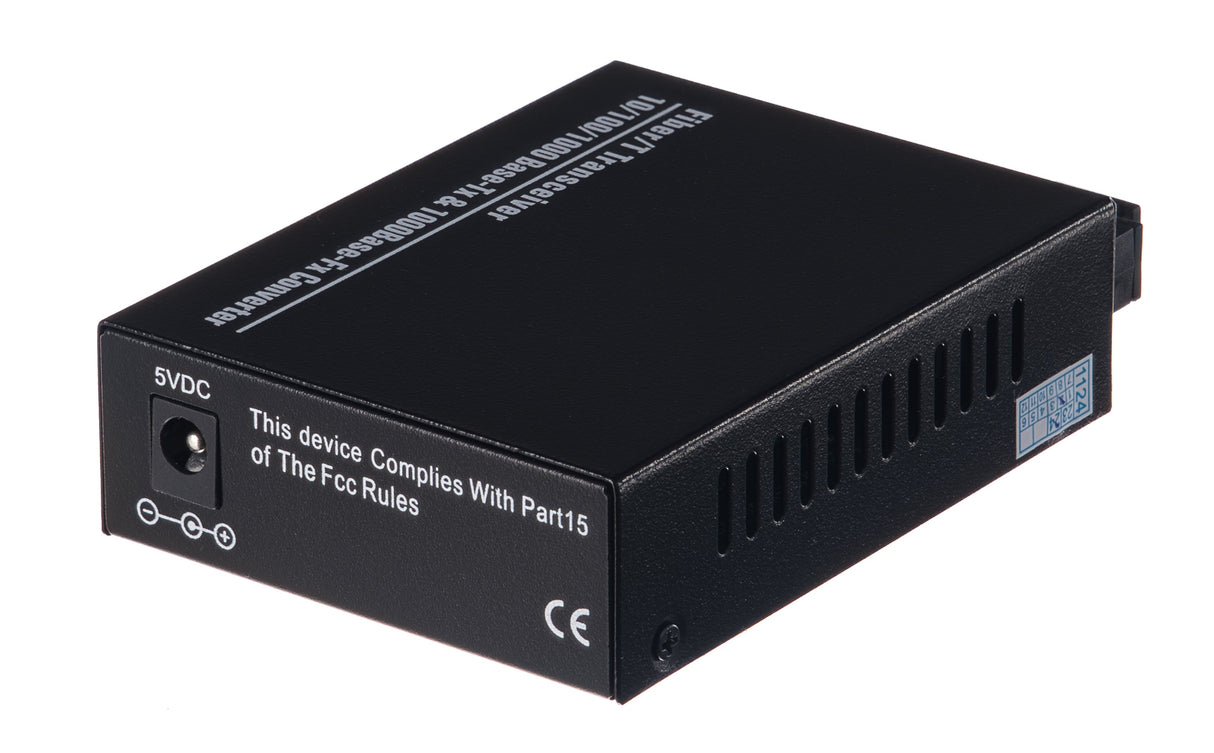

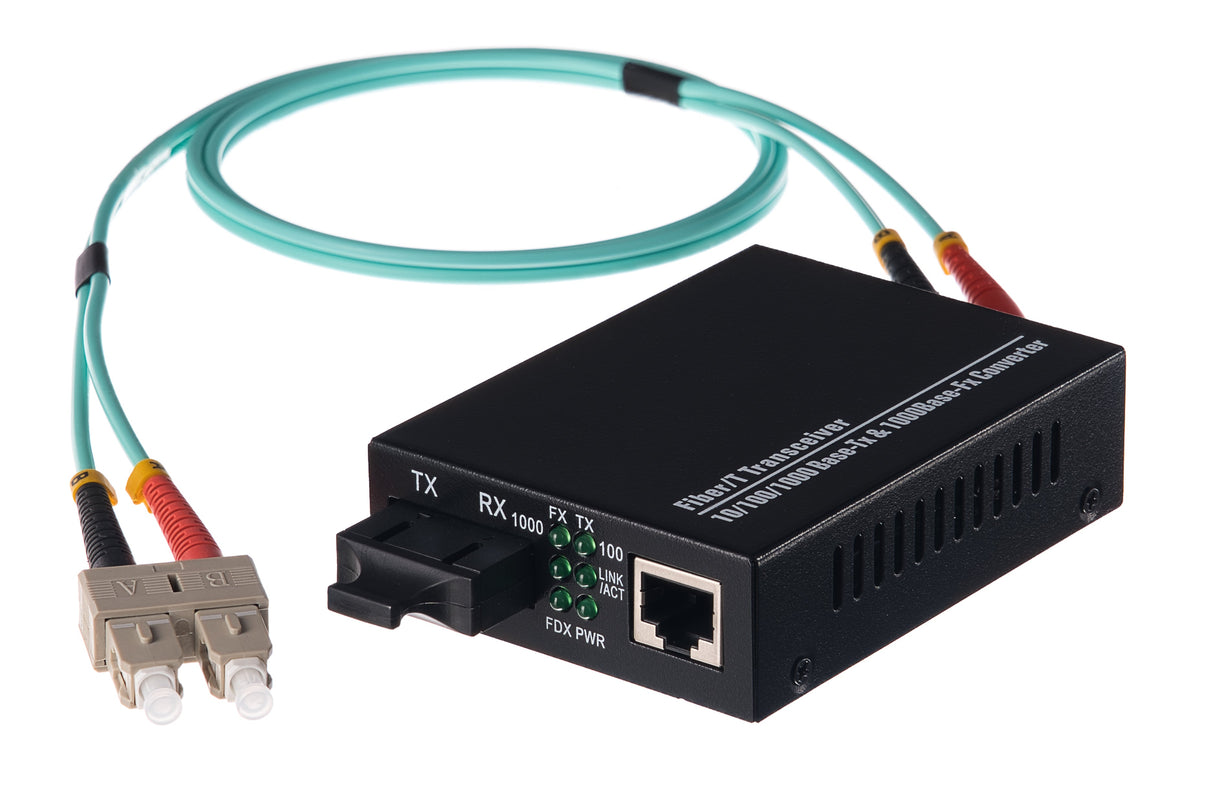

10/100/1000M Optical Fibre Media Converter Series

10/100/1000M Ethernet media converter adopts switching technology to fulfill media conversion.
It complies with IEEE802.3z and IEEE802.3ab standards, and supports two types of media network connections: 10/100/1000Base-T and 1000Base-SX/
LX.

It inter-converts electrical signals of 10/100/1000Base-T twisted pairs with optical signals of 1000Base-SX, extending the transmission distance of a network from 100m via copper cables to 220m (fibre size: 62.5/125μm)/550m (fibre size:50/125μm) via fibre optical cables. It supports transmission in multi-mode dual fibre; single-mode dual fibre, single-mode single fibre.

FEATURES

Supporting inter-conversion between 10/100/1000Base-TX and 1000Base-SX
• Supporting full-duplex and half-duplex and its auto-sensed
• Supporting the transmission of extra-long VLAN packets Supporting STP to
form a redundant network
• Supporting automatic cross connection of twisted pair interfaces, facilitating
system commissioning and installation
• Supporting Quality of Service (QoS) and ensuring the transmission of
VoIP packets

APPLICATION
10/100/1000Mbps Gigabit optical Ethernet long-distance transmitting
network
