Hdmi Extender Over Cat 5e/6 30 mtrs 1.3b

Product Code:

Find your Product

Hdmi Extender Over Cat 5e/6

The HDMI Extender by Cat5e/Cat6 lets you extend the distance between any HDMI-equipped DVD player, Media Centre PC or Games Console and your TV screen using Cat5 or Cat6 network cable.
The transmitter and receiver are then connected over a longer distance by two lengths of Cat5e cable (or Cat6 cable). One Cat5e cable carries the HDMI DDC signals and the other Cat5e cable carries the HDMI Video and Audio signals.
The HDMI over Cat6 enables an HDMI display to be located up to 30 meters away from the source device.
The Hdmi over cat5e extender is perfect for the meeting room, home theater or any installation that needs long distance transmission and superior video quality.
With support for High-Definition resolutions of up to 1920x1080 / 1080p, this HDMI extender can easily be installed using new or existing Ethernet infrastructure wiring.

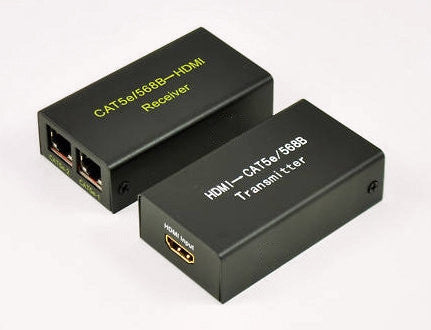

The HDMI over Cat5e/Cat6 video extender kit includes both the local transmitter and remote receiver units, perfect for point-to-point digital signage applications that require high quality HDMI video.

Resolutions and Performance will vary with length:

Cable: CAT6, Length: 30 mtr, Resolution 1080P
Cable: CAT6, Length: 40mtr, Resolution: 1080I/720P
Cable: CAT6, Length: 45mtr, Resolution: 480P
Cable: CAT5E, Length: 25 mtr, Resolution:1080P
Cable: CAT5E, Length: 35 mtr, Resolution:1080I/720P
Cable: CAT5E, Length: 45 mtr, Resolution:480P

Hdmi Extender Over Cat 5e/6 Specification:

Cat-5e/6 cable can substitute HDMI cable to achieve long distance transmission
Follow the standard of IEEE-568B
Transmission distance can be up to 30 metres for 1080p while using CAT-6 cable
Auto-adjustment of feedback, equalization
Signalling rates up to 2.25Gbits in support of 1080P display
HDCP compliant
Devices with DVI output are not supported due to the lack of signal control
