LC-ST Multiomde OM1 Fibre Optic Cables

Product Code:

Find your Product

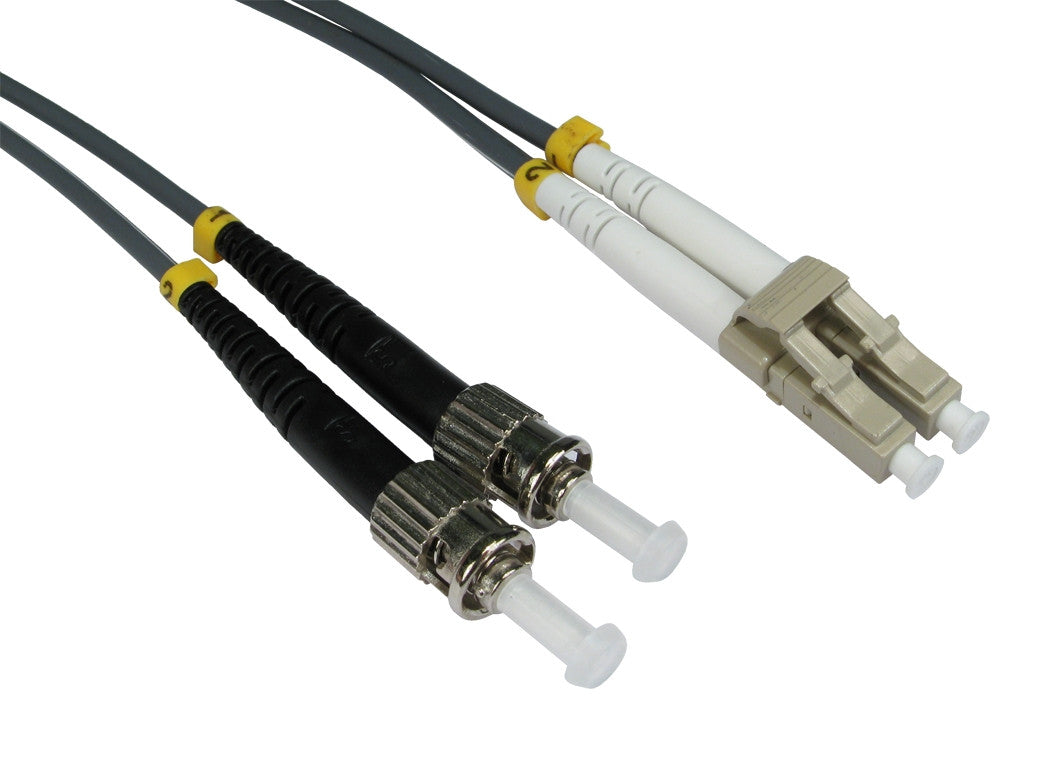

LC-ST Multimode 62.5/125 OM1 grey fibre optic patch cables

  • Great value Om1 fibre patch cables suitable for 10Gb connection
  • Manufactured with high quality LC and ST connectors
  • Grey Low Smoke Zero Halogen jacket adds security in case of fire
  • Available in grey colour from 0.5 mtr up to 50 mtr lengths. Custom length fibre optic cables can be manufactured upon request
  • Perfect for data centers, as it supports video, data and voice services

Order before 16:00 for next day delivery.

These excellent value LC - ST fibre patch leads multimode OM1 are constructed from high quality LC and ST connectors and they are available from 0.5 mtr up to 50 mtr lengths. Each fibre patch lead cable has a short strain relief boot and it is supplied with a test report detailing insertion loss. All of the Fibre Patch Lead cables come with an LSOH (Low Smoke Zero Halogen - LSZH) sheath and they individually bagged and labelled. The cables have LC and ST connectors, grey low smoke zero halogen jacket and 62.5pm fibre core with 125pm cladding.
Grey Om1 multimode 62.5/125 fibre cables are available in all common output interfaces and in a complete range of lengths from 0.5 mtr up to 50 mtr. LC - ST fibre cables OM1 are suitable for standard and SFP type patch cabling requirements. Each fibre optic patch cable is made using high quality multimode duplex fibre cable and fibre connectors.
The multi-mode duplex fiber cable terminates with ceramic ferrule LC and stainless steel ST connectors for a durable fit. Each fiber breakout has 18" of 3.0mm furcation tubing for extra durability.

Max Length Supported by OM1 cable (62.5/125) Multimode Fibre Optic Cable

  • 100 Mb Ethernet connection: 2000 mtr
  • 1 Gb Ethernet connection: 275 mtr
  • 10 Gb Ethernet connection: 33 mtr

LC-ST Multimode 62.5/125 OM1 grey fibre optic cables - Custom cable:

If you require LC-ST fibre optic cables in a different length, please visit our Custom Made Cables page or Contact us


LC-ST MULTIMODE 62.5/125 OM1 GREY FIBRE OPTIC PATCH CABLES SPECIFICATION:

LC - ST Connectors
62.5µm core, 125µm cladding
Duplex
Multi-mode fibre optic cable
OM1 fibre optic cable
Available from 0.5 mtr up to 50 mtr lengths
Supports 10Gb
Grey LSZH jacket
Insertion Loss 0.3dB
Diameter 3.0mm
Bend radius: 60mm
Operating temperature : -20 - 60°C
