Fibre Patch Cables
- Easy to order Fibre Patch cables.
-
All fibre types and connectors
- Lengths from 0.5mtr to 30mtr
Fibre Patch Cables - OM1 62.5/125 / 0.5 mtr is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fibre Patch Cables

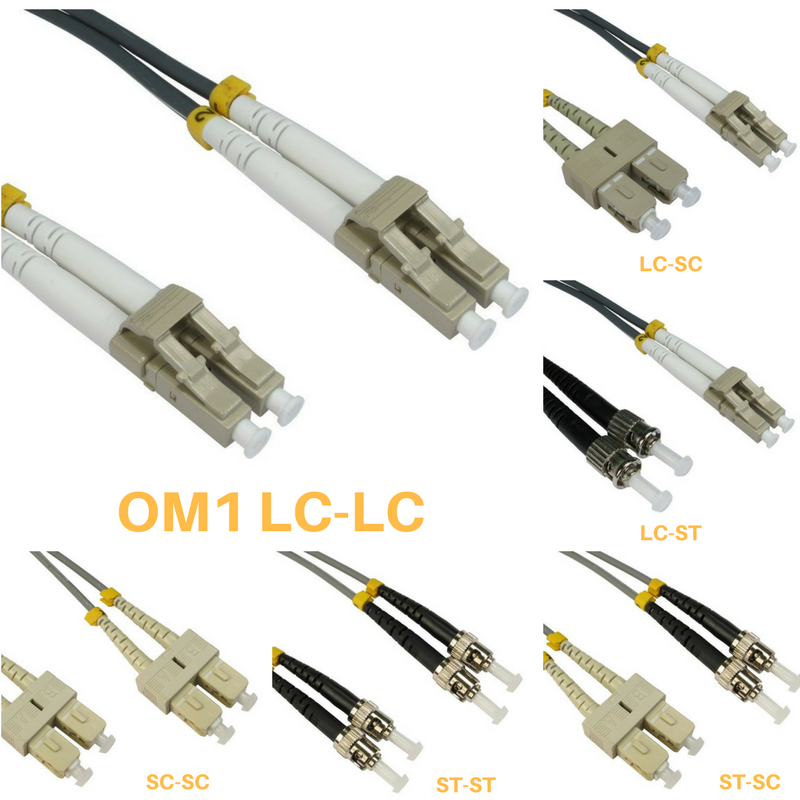

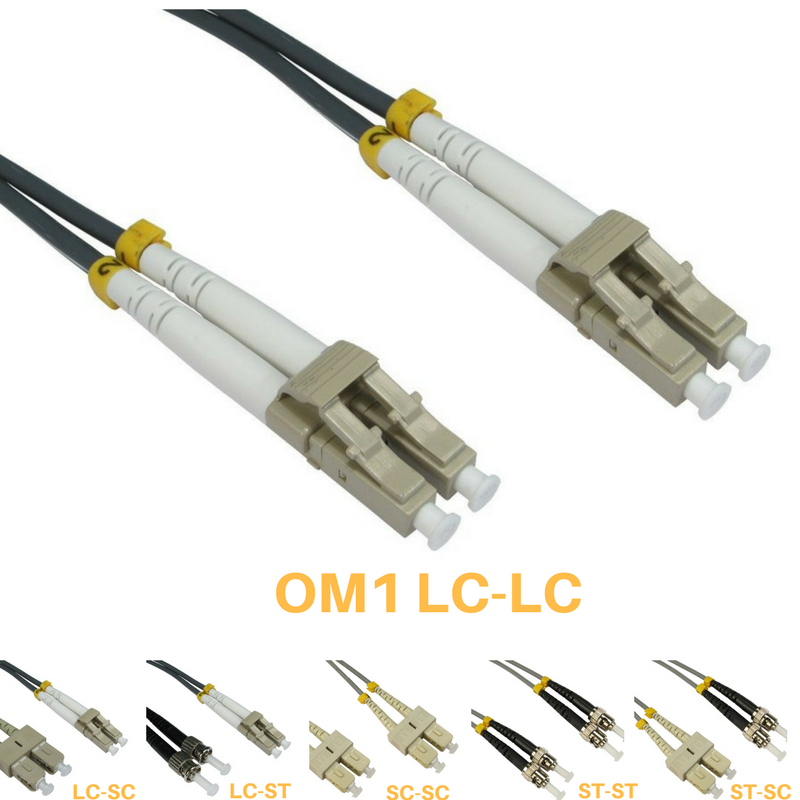

OM1 (62.5 / 125μm) Multimode fibre optic cables are made with grey low smoke zero halogen jacket and 62.5pm fibre core with 125pm cladding..
-

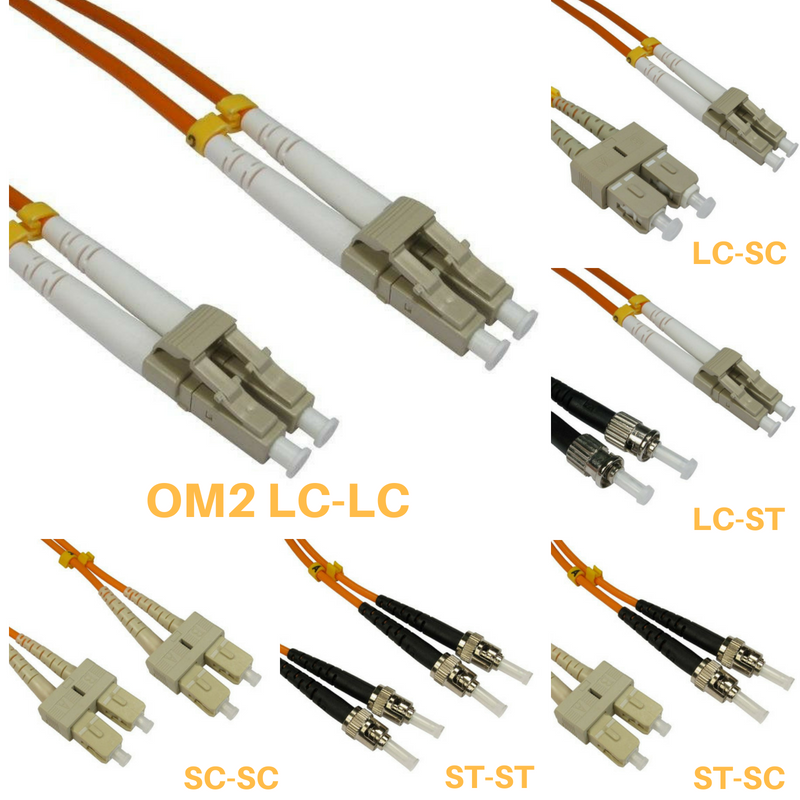

OM2 (50/125) Multimode fiber cables are designed to carry 1 Gigabit Ethernet up to 550 mt. Om2 is considered obsolete by the early 2000s, almost completely replaced by the OM3 or OM4 cables.
-

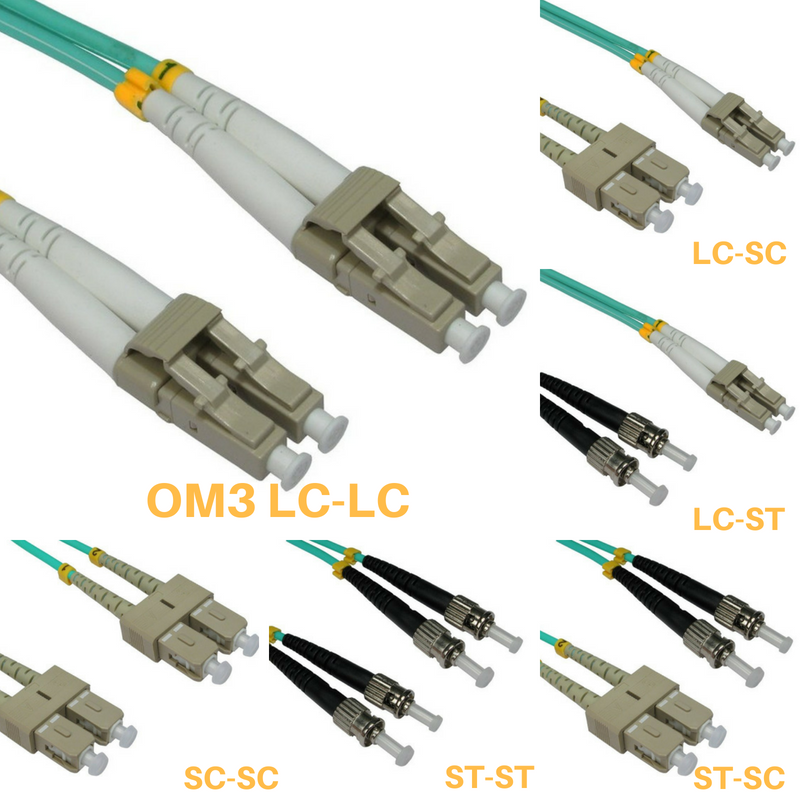

OM3 (50/125) Multimode is high-quality fibre suitable for transmissions with Laser VCSEL which can carry 10Gb Ethernet up to 300 mtr. OM3 cables are backwards compatible with Om2
-

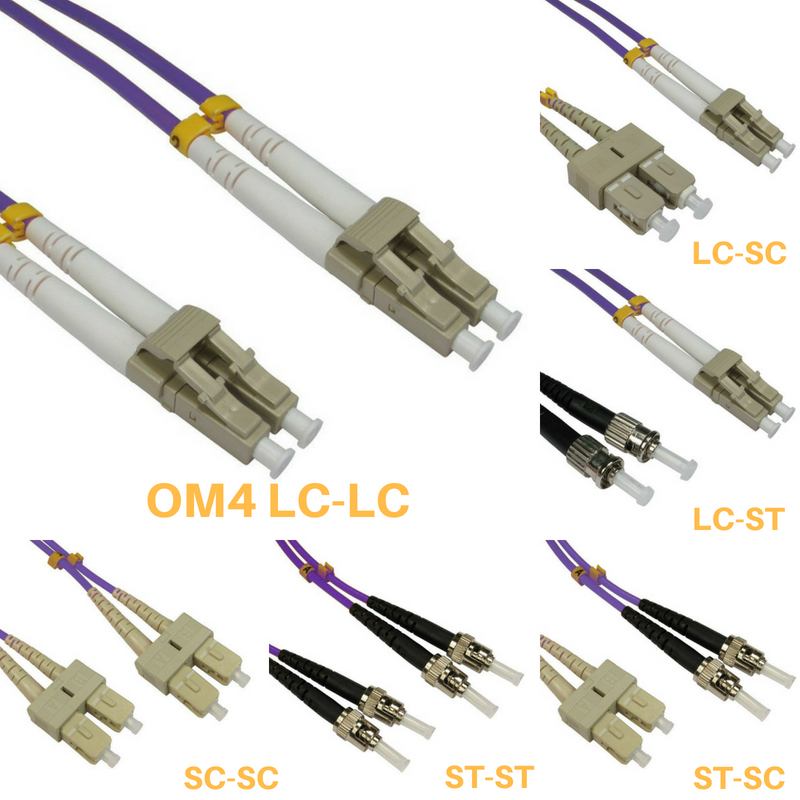

OM4 (50/125) Multimode fiber cable is of the highest quality suitable to carry the 40Gb Ethernet up to 150 meters and it can carry 10 Gb Ethernet up to 550 metres. It is also backwards compatible with OM3 and OM2

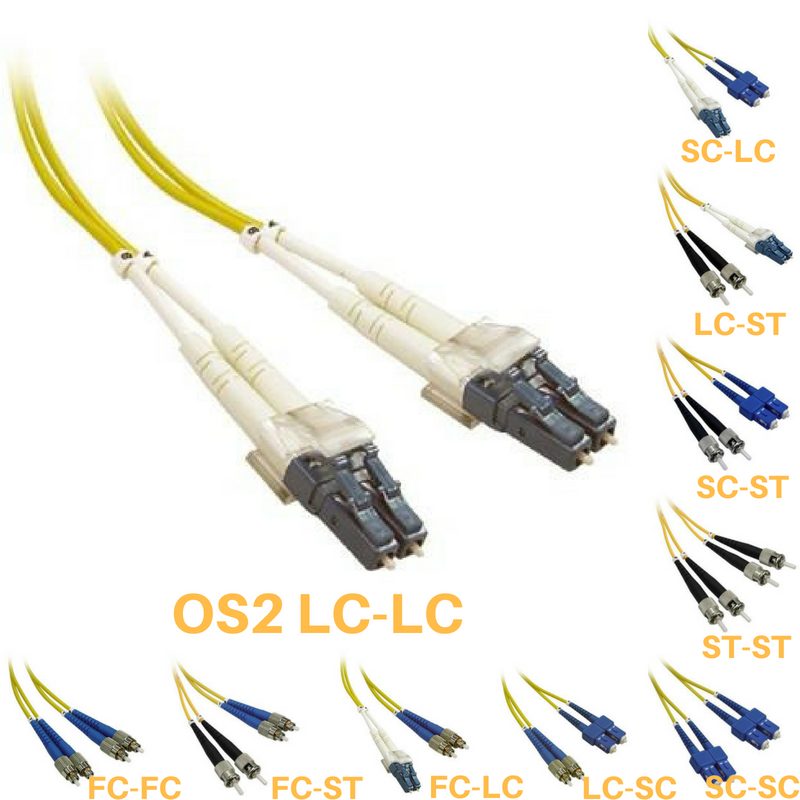

OS2 (9/125) Singlemode fibre optic cable is commonly used in long distance because a small diametral core creates the ability for the signal to travel faster and further. This is backwards compatible with OS1 (9/125) single mode networks.
