Cat6a Armoured SWA Cable – Sold Per Metre

£2.89

Order by the metre – simply set the quantity to the number of metres you need. For example, add 100 units for a 100m continuous run.

Cable Type (Price from)
DESCRIPTION

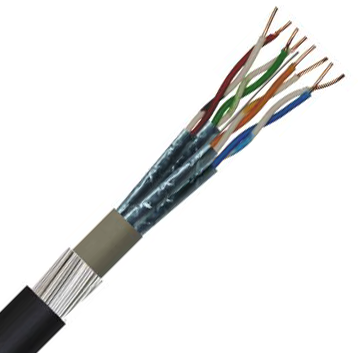

Cat6a Armoured SWA Cable – cut-to-length and ready for external or underground installations requiring speed, shielding, and mechanical protection. Featuring U/FTP foil shielding over each pair, solid copper conductors, and a steel wire armoured jacket, this cable supports 10Gbps speeds and 500MHz bandwidth.

This cable is supplied as separate cut lengths. For example, if you order 1 x 20m + 1 x 30m, each length will be cut and shipped individually.

Cut Lead Times:

12 cuts or fewer placed before 3pm are usually shipped next working day. For larger orders, allow 1 working day per 12 cuts. Need it urgently? Contact us and we’ll confirm turnaround.

Key Features:

  • Category: Cat6a – 10Gbps / 500MHz
  • Shielding: U/FTP – foil shield over each pair
  • Conductor: 23 AWG solid bare copper (0.565mm)
  • Armour: Galvanised Steel Wire Armoured (SWA)
  • Jackets: Grey PE inner / Black PE outer (UV-resistant, LSZH)
  • Temperature Rating: -20°C to 80°C
  • CPR Rating: Fca
  • Warranty: 25 Years

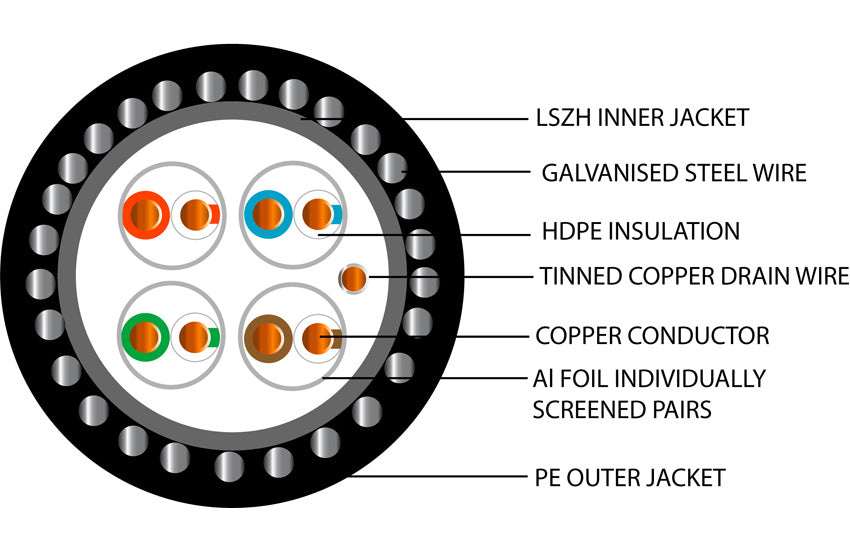

Technical Specification:

Conductor Solid Bare Copper – 23 AWG
Conductor Diameter 0.565 ±0.01mm
Insulation Polyethylene (PE)
Insulation Thickness 0.36mm
Shielding Aluminium Foil over each pair
Drain Wire Tinned Copper
Outer Diameter 11.20 ±0.50mm
Inner Jacket Diameter 7.80 ±0.05mm
DC Resistance < 21Ω/km
Operating Temperature -20°C to +80°C

Also searched as: cat6a armoured cable, swa cat6a, u/ftp cat6a swa, cat6a ethernet armoured, cat6a external shielded cable.

Need a lower-cost alternative? Try our Cat6 Armoured SWA Cable or see the full Armoured Ethernet Cable range.
