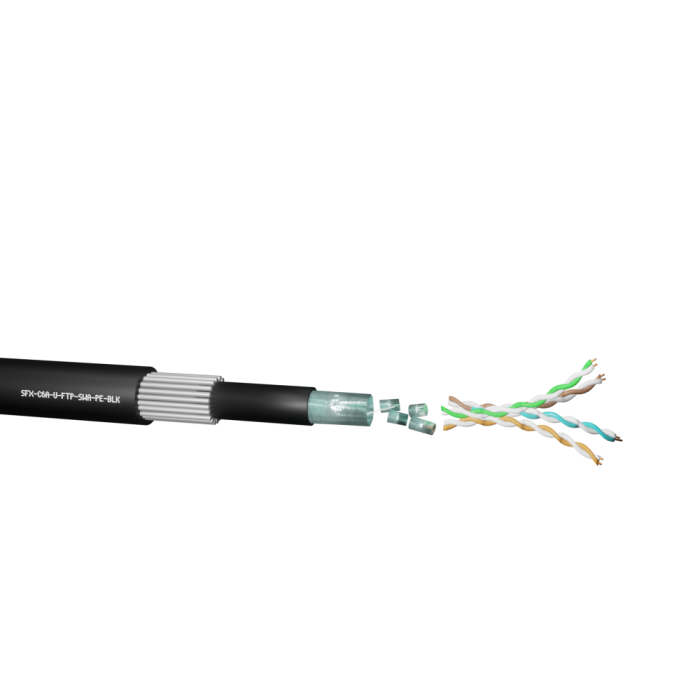

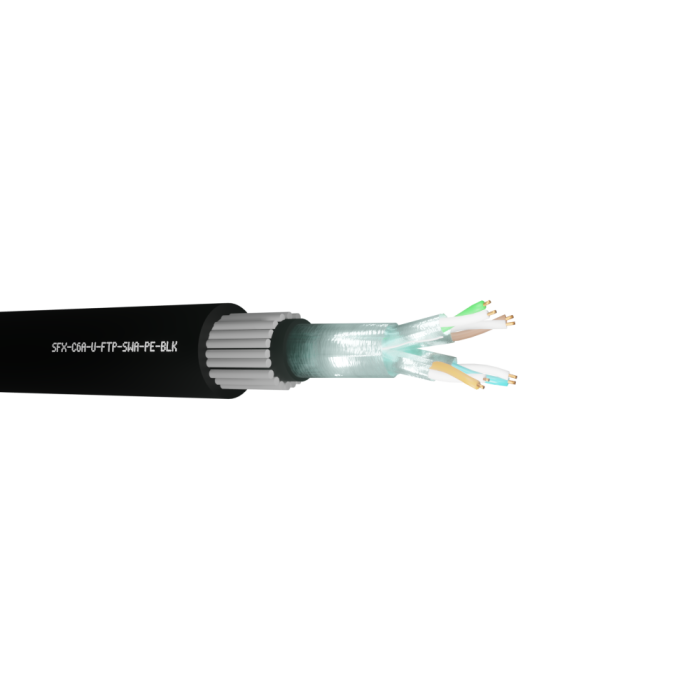

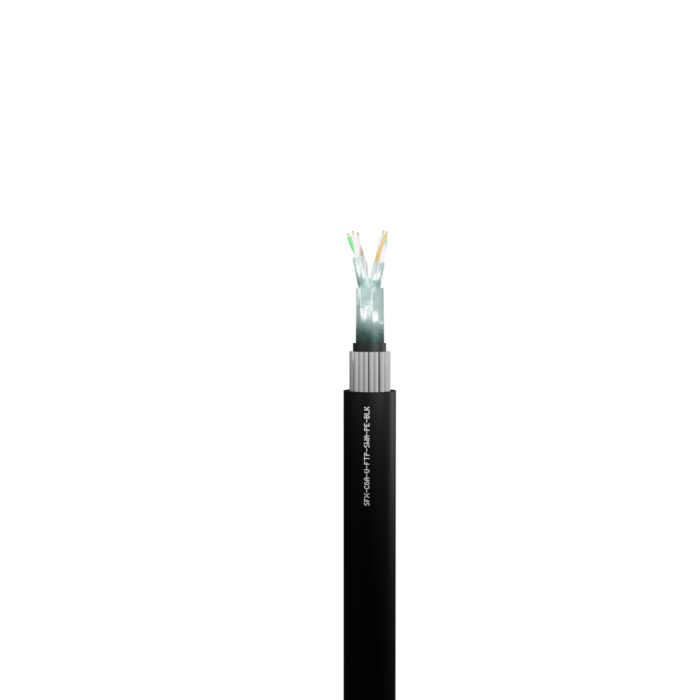

Cat6a U/FTP SWA External Cable – Black PE – Cut to Length

£2.89

Order by the metre – simply set the quantity to the number of metres you need. For example, add 135 units for a 135m continuous run.
Product Code: FC-C6A-UFTP-SWA-PE-BLK-1
Cable Type (Price from)
DESCRIPTION
TECHNICAL SPECS

Technical Specifications

Conductor Solid Bare Copper – 23 AWG
Conductor Diameter 0.565 ±0.01mm
Insulation Polyethylene (PE)
Insulation Thickness 0.36mm
Shielding Aluminium Foil over each pair
Drain Wire Tinned Copper
Outer Diameter 11.20 ±0.50mm
Inner Jacket Diameter 7.80 ±0.05mm
DC Resistance <21Ω/km

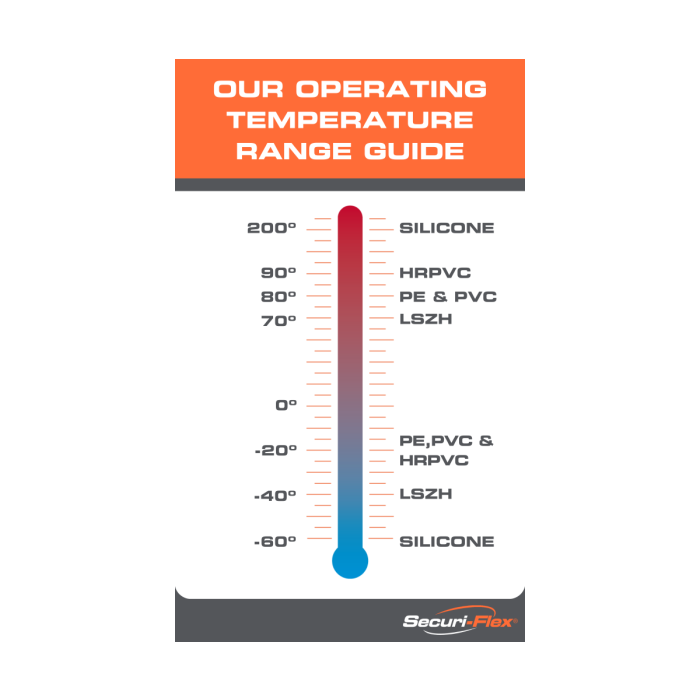

Operating Temperature -20°C to +80°C

Discover More

VIEW ALL
FruityCables

Cat6a U/FTP SWA External Cable – Black PE – Cut to Length

£2.89

Order by the metre – simply set the quantity to the number of metres you need. For example, add 135 units for a 135m continuous run.

Cat6a Armoured SWA Cable – cut-to-length and ready for external or underground installations requiring speed, shielding, and mechanical protection. Featuring U/FTP foil shielding over each pair, solid copper conductors, and a steel wire armoured jacket, this cable supports 10Gbps speeds and 500MHz bandwidth.

This cable is supplied as separate cut lengths. For example, if you order 1 x 20m + 1 x 30m, each length will be cut and shipped individually.

Cut Lead Times:

12 cuts or fewer placed before 3pm are usually shipped next working day. For larger orders, allow 1 working day per 12 cuts. Need it urgently? Contact us and we’ll confirm turnaround.

Key Features:

Also searched as: cat6a armoured cable, swa cat6a, u/ftp cat6a swa, cat6a ethernet armoured, cat6a external shielded cable.

Need a lower-cost alternative? Try our Cat6 Armoured SWA Cable or see the full Armoured Ethernet Cable range.
