Cat5e UTP Direct Burial Cable – Black HDPE – 1000m

Name: Cat5e UTP Direct Burial Cable – Black HDPE – 1000m
Brand: FruityCables
SKU: FC/C5-UTP-DB-BLK-1000
Price: 508.86 GBP
Availability: InStock

£508.86 GBP

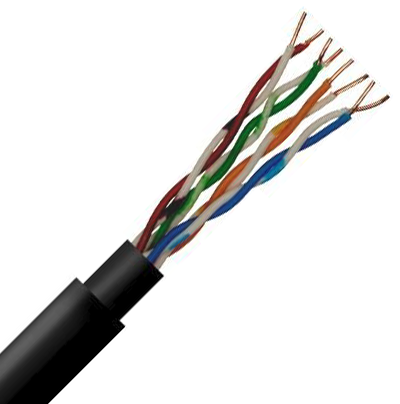

1000m box or reel of direct burial Cat5e UTP cable with durable black HDPE sheath. Designed for large underground structured cabling and permanent outdoor installations.

Product Code: FC/C5-UTP-DB-BLK-1000

DESCRIPTION

This Category 5e UTP data cable delivers reliable performance up to 100 Mbps over distances of 90 metres, making it ideal for LAN and telecommunications installations.

Engineered with unscreened construction, it offers superior flexibility and cost-effectiveness for building networks. The solid core design provides excellent value without compromising performance. Built with high-density polyethylene, this outdoor-rated cable withstands burial underground without requiring additional conduit or ducting, ensuring durability in demanding environments. Perfect for both indoor and outdoor networking applications.

TECHNICAL SPECS

Technical Specifications

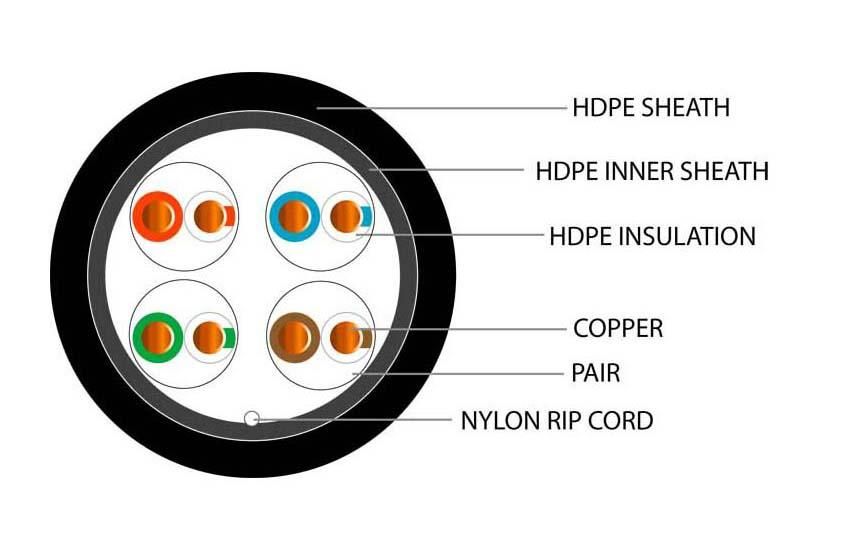

Cable Construction

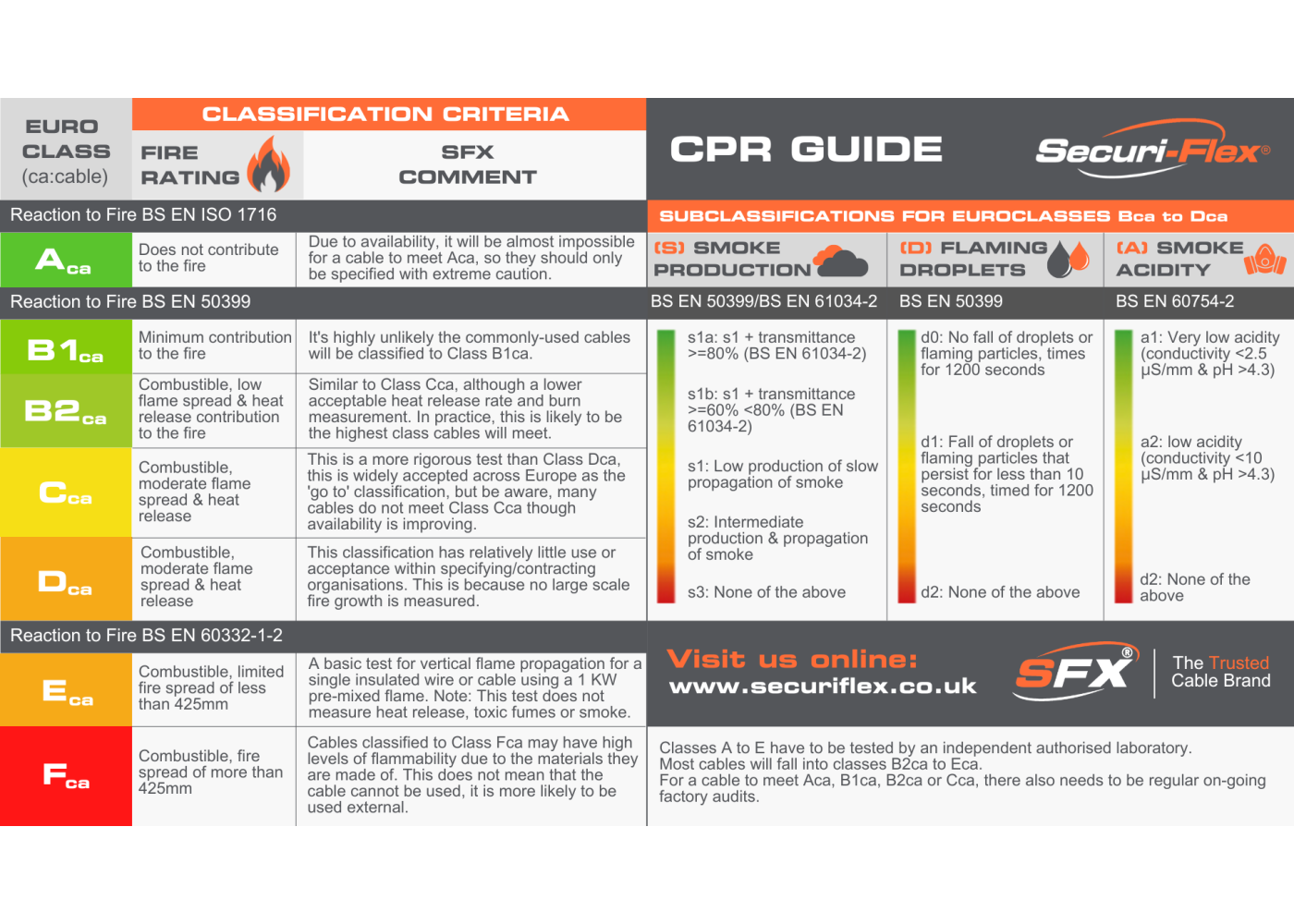

CPR Fca
Conductor Bare Copper
Conductor Diameter (mm) 0.47 ±0.02
Overall Diameter (mm) 6.50 ±0.20

Insulation

Insulation HDPE
Insulation Colour Blue/White/Blue;Orange/White/Orange;Green/White/Green;Brown/White/Brown
Insulation Thickness (mm) 0.18

Outer/Jacket Specification

Outer Jacket HDPE
Outer Jacket Colour Black RAL 9005
Inner Jacket HDPE
Inner Jacket Colour Black RAL 9005
Inner Jacket Diameter (mm) 5.20 ±0.20
Inner Jacket Thickness (mm) 0.5
Overall Colour Black
Overall Diameter (mm) 6.50 ±0.20
Jacket Colour Black RAL 9005
Nylon Rip-Cord White 210D

Electrical Characteristics

Max Conductor DC resistance @ 20°C <102.40O/km

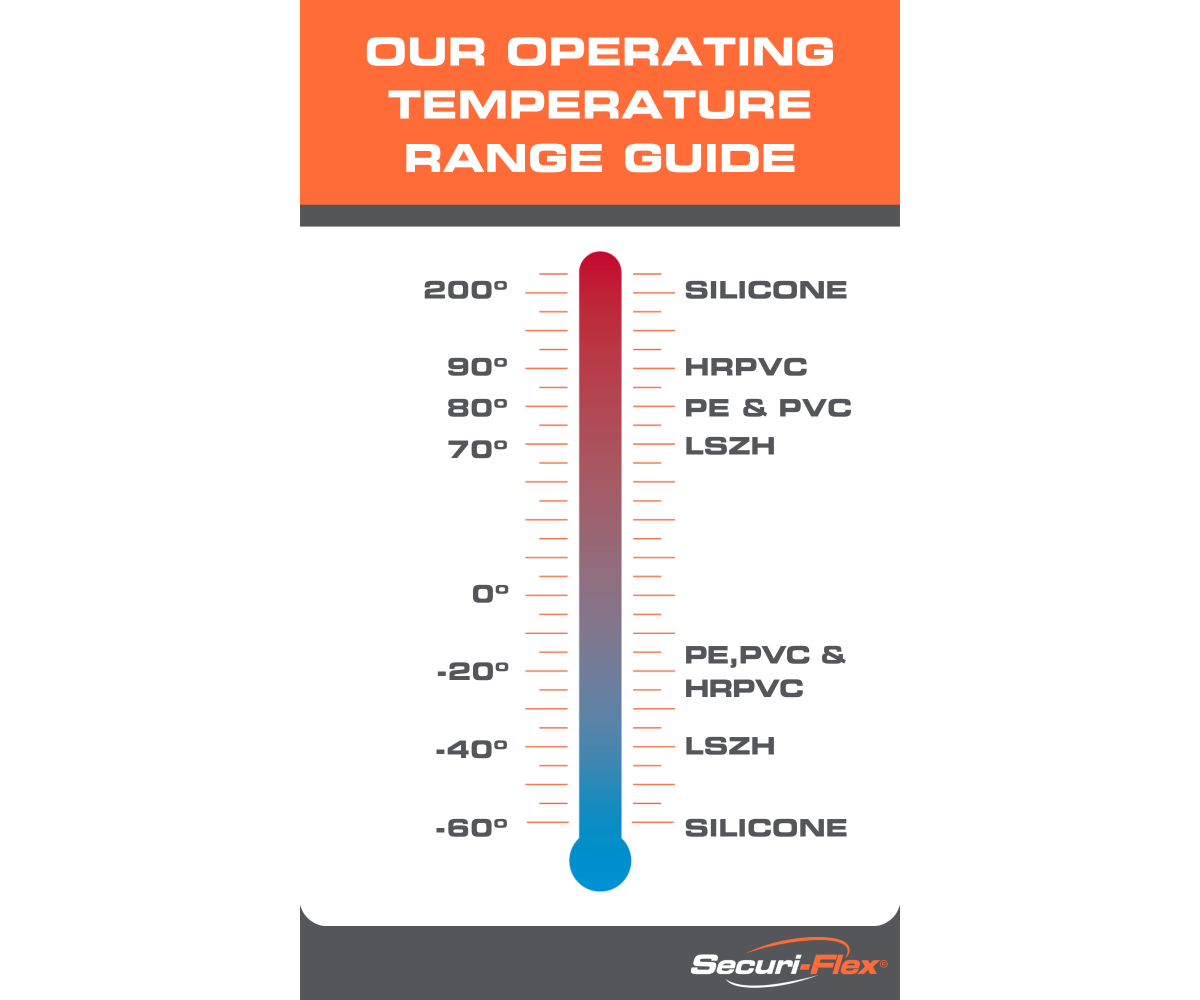

Rated Temperature (°C) -20°C to 80°C
