UK Power and USB Socket

USB and Uk Power Sockets allow you to charge your mobile devices while keeping your plug sockets free for all other devices.
USB wall outlet is Ideal for charging mobile phones, MP3 players, cameras, games consoles and much more. Simply plug your USB cable directly into the USB sockets. You will no need to have large bulky looking transformer or any adaptor or your charger plug

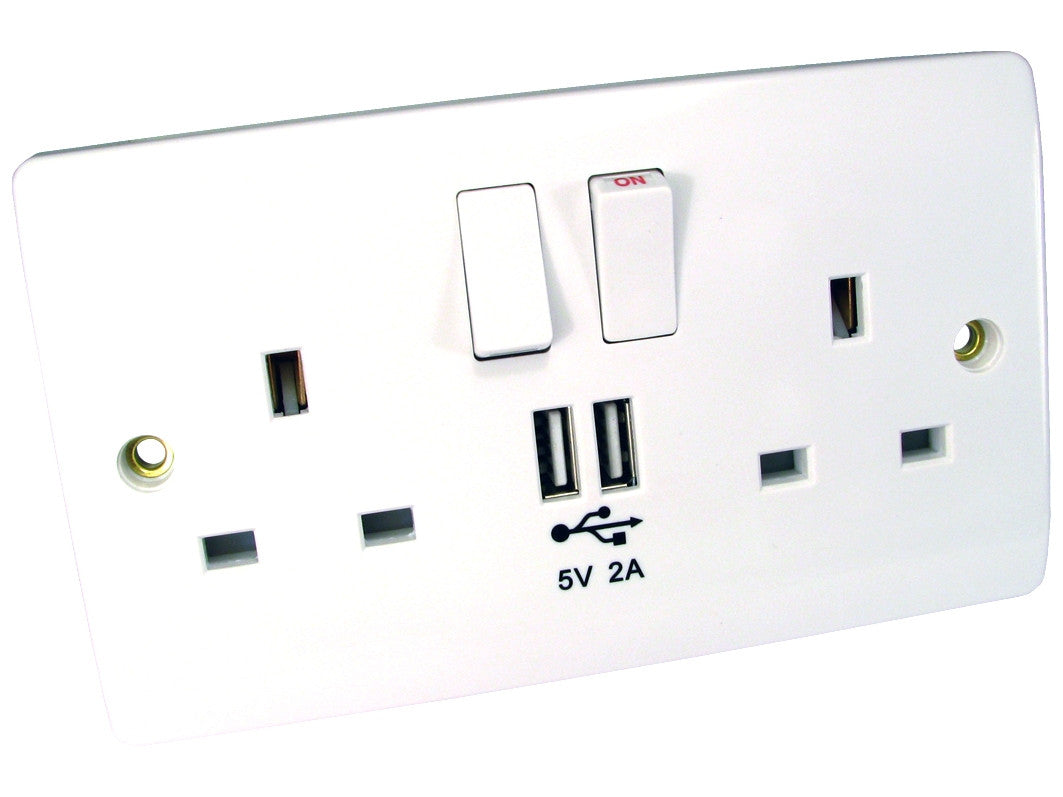

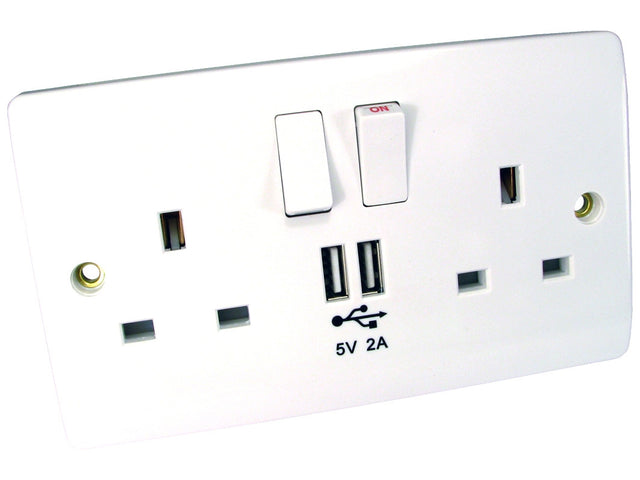

This Usb wall socket features 2 standard UK 3-pin sockets and 2 USB ports that allow you to free up your UK mains sockets for use with other appliances
The usb power socket fits any backbox up to a depth of 25mm and USB ports are limited to 2 Amps, meaning only the required power is delivered to the devices: if the current exceeds this it will automatically trip off to protect your devices

The UK Power and USB Socket must be installed by a competent person, in accordance with the current edition of the IET Wiring Regulations (BS7671) & Building Regulations.
Please read these instructions carefully before commencing with installation. Failure to install correctly will negate the product warranty.

UK Power and USB Socket Instructions

Firstly, ensure you isolate the mains power supply and remove the fuse in the fuse box or switch off the circuit breaker in the consumer unit.

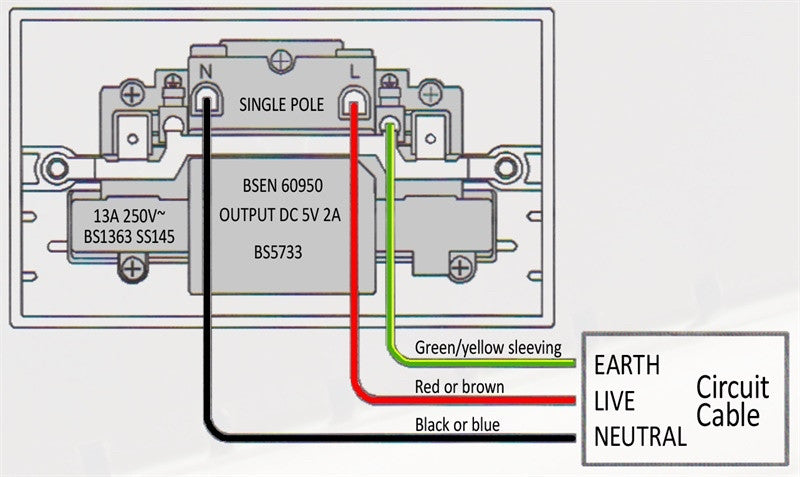

Following the diagram over-leaf pass the cable through the entry holes and connect to the appropriate terminal.

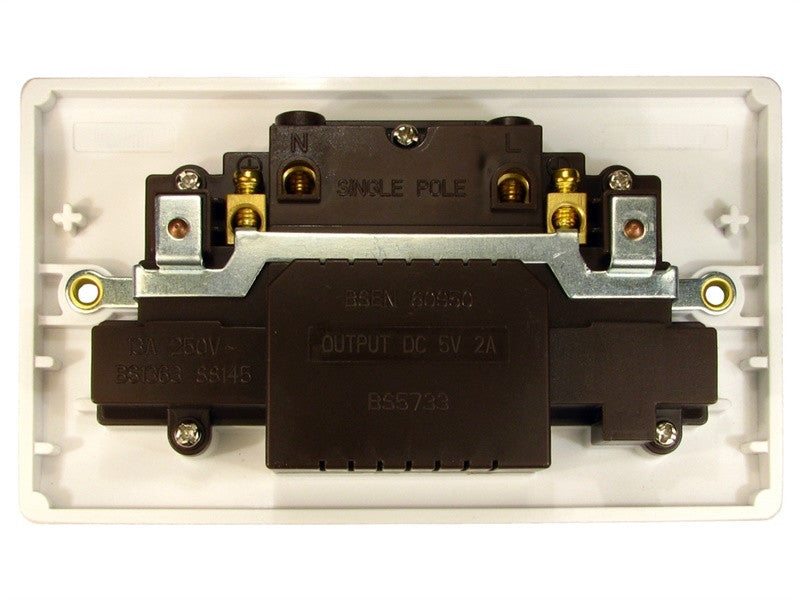

If an Earth loop connection is required, use the additional earth terminal block located in the back box.
Re-connect the mains supply when the installation is correctly completed.
Before use we recommend that a socket test is carried out.
DO NOT MEGGER TEST – this will damage the USB charging circuit.

UK Power and USB Socket Specifications

Working voltage: 13A, 250V
Working temperature -15 to 40 C
USB Output: 2A, 5V
UK 3 pin socket output: 13A, 250V
Fits any standard back box (minimum depth of 25mm)

Safety Information
We recommend using a competent person for installation.
Only suitable for indoor installations.
Before carrying out any electrical work, isolate the mains power supply & refer to the fitting instructions.
For safe installation & connection ensure that the earth is connected.
Wire/wiring colours are in accordance with the current IET Wiring Regulations
Before use we recommend that a socket test is carried out.
