SC-SC Multimode OM2 Fibre Optic Cables

Product Code:

Find your Product

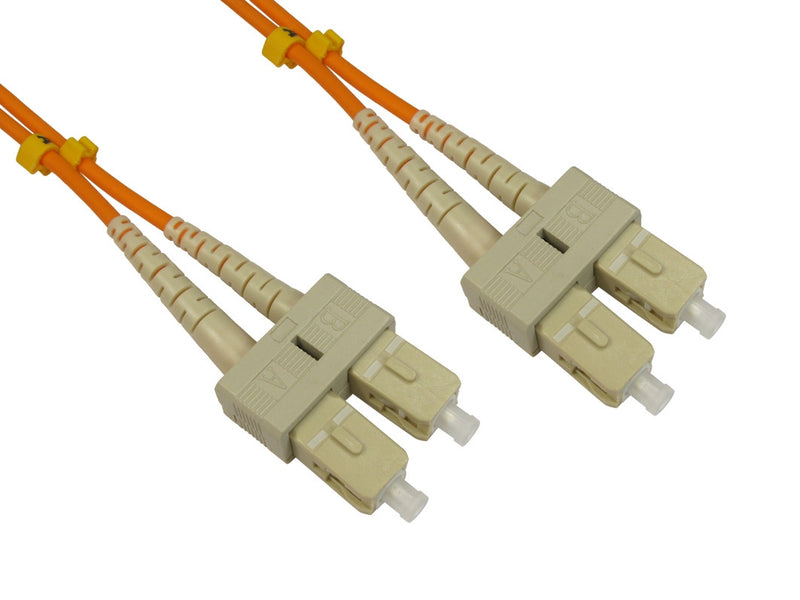

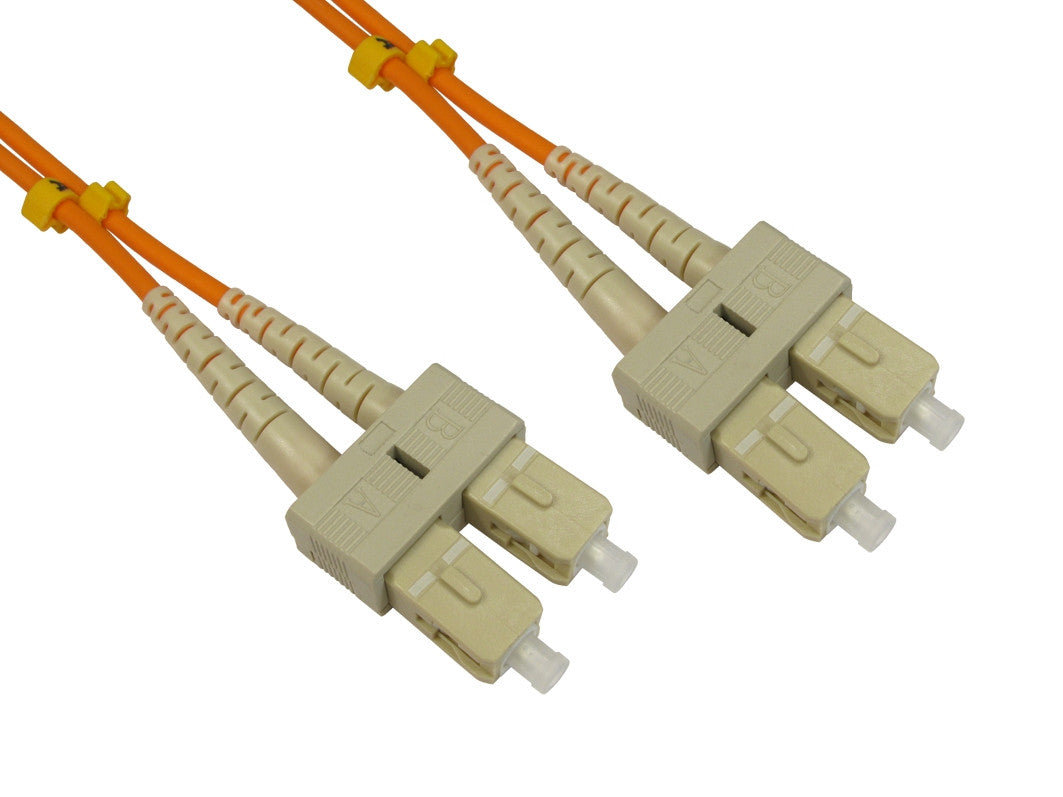

SC-SC Multimode 50/125 OM2 Orange Fibre Optic Patch Cables

  • Excellent Om2 fibre optic cable suitable for 10Gb connection
  • Higher bandwidth and transmission rates at longer distances with lower loss compared to any OM1 cable
  • Orange Low Smoke Zero Halogen jacket adds security in case of fire
  • Available from 0.5 mtr up to 50 mtr lengths. Custom length fibre optic cables can be manufactured upon request
  • Premises cabling in data networks including backbone, riser and horizontal

Order before 16:00 for next day delivery

Our high quality SC-SC Om2 fibre optic cable are constructed from durable SC connectors and they feature optical fiber glass for higher speed, lower loss, better data transmission.
These excellent value SC - SC fiber patch leads OM2 are available from 0.5 mtr up to 50 mtr lengths. Each fiber patch lead cable has a short strain relief boot and it is supplied with a test report detailing insertion loss. SC-SC Multimode OM2 fiber optic leads come with a Low Smoke Zero Halogen (LSZH) sheath to add security in case of fire: at high temperature these cables do not produce a toxic combination of acid and gas and they are the preferred choice in case of rooms with limited ventilation.
To Provide the best quality and security, each cable is individually bagged and labelled.

OM2 Fibre Optic Cables vs OM1 Fibre Optic Cables

Our OM2 50/125 Multimode Duplex SC to SC fiber optic cables are a great cost-effective solution providing higher bandwidth and transmission rates at longer distances with lower loss compared to any OM1 62.5/125 fiber optic cable.
Max Length Supported by OM2 cable (50/125) Multimode Fibre Optic Cable

  • 100 Mb Ethernet connection: 2000 mtr
  • 1 Gb Ethernet connection: 550 mtr
  • 10 Gb Ethernet connection: 82 mtr
Max Length Supported by OM1 cable (62.5/125) Multimode Fibre Optic Cable
  • 100 Mb Ethernet connection: 2000 mtr
  • 1 Gb Ethernet connection: 275 mtr
  • 10 Gb Ethernet connection: 33 mtr

SC-SC Multimode 50/125 OM2 orange fibre optic cables - Custom cable:

If you require SC-SC fibre optic cables in a different length, please visit our Custom Made Cables page or Contact us


SC-SC MULTIMODE 50/125 OM2 ORANGE FIBRE OPTIC PATCH CABLES SPECIFICATION:

SC - SC Connectors
OM2 fibre optic cable
50µm core, 125µm cladding
Duplex
Multi-mode fibre optic cable
Supports 10Gb
Orange LSZH jacket
Insertion Loss 0.3dB
Diameter 3.0mm
Bend radius: 60mm
Operating temperature : -20 - 60°C
