Cat7a S/FTP Screened LSZH

Cat7a S/FTP Screened LSZH

Alternate views:

Product Code:

Find your Product

Excel Cat7a Screened S/FTP LSOH Cable is manufactured to meet all the ISO, CENELEC and TIA standards. This delivers Class FA link and channel performance supporting all applications detailed and proposed within the standards.

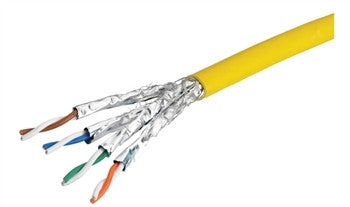

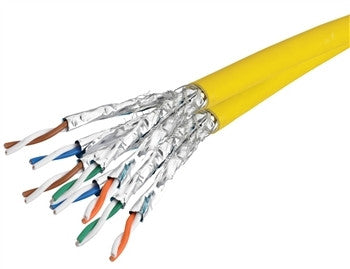

Each cable consists of 4 pairs individually wrapped in a covering of high quality and strong aluminium/polyester foil tape providing an individual screen for each pair. These sub units are then cabled together, with the pairs set to different lay lengths to ensure optimum performance, an overall braid screen is applied to provide further immunity to outside noise and to mitigate any risk of alien cross talk.

Features

Low Smoke Zero Halogen Jacket (LSZH)
High performance design
Category 7A Performance to 1000 MHz
23 AWG Conductors
3rd Party Delta Verified Component Compliance No.2 cabling system by market share, as reported by BSRIA
ETL Component Verified
