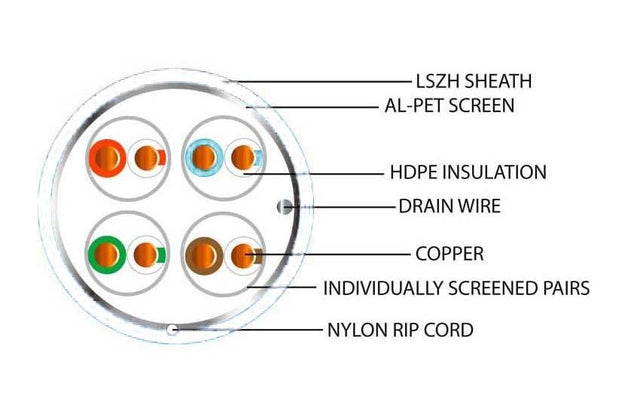

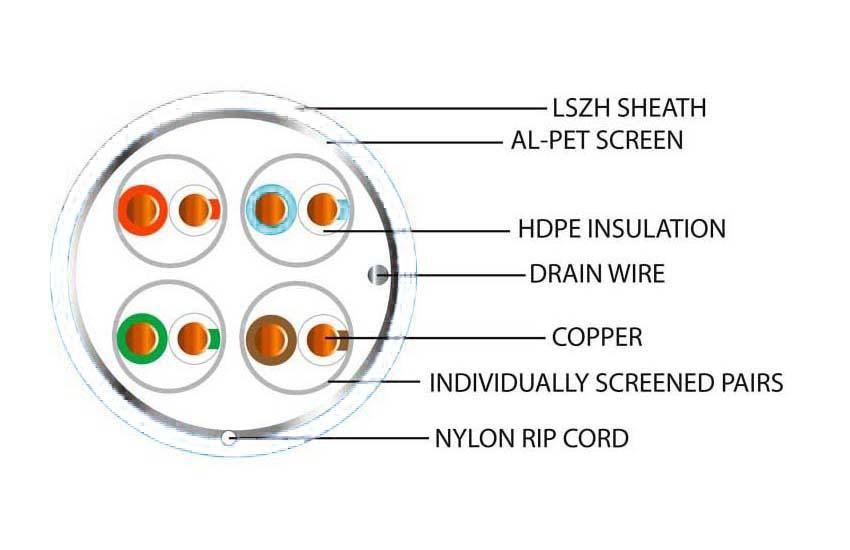

Cable Construction
CPR Dca -s2 -a1 -d2
Conductor Bare Copper
Conductor 2 N/A
Conductor Diameter (mm) 0.565 ±0.010
Overall Diameter (mm) 7.50 ±0.5
Insulation
Insulation HDPE
Insulation Colour Blue/White;Orange/White;Green/White;Brown/White
Insulation Thickness (mm) 0.1
Insulation 2 Thickness (mm) N/A
Outer Insulation N/A
Outer Insulation Diameter (mm) N/A
Outer Insulation Thickness (mm) N/A
Outer/Jacket Specification
Outer Insulation N/A
Outer Jacket LSZH
Outer Jacket Colour White
Inner Jacket N/A
Inner Jacket Colour N/A
Inner Jacket Diameter (mm) N/A
Inner Jacket Thickness (mm) N/A
Jacket LSZH
Overall Colour White
Overall Diameter (mm) 7.50 ±0.50
Jacket Colour White RAL 9003
Jacket Thickness (mm) 0.55 ±0.05
Nylon Rip-Cord White 210D
Electrical Characteristics
Max Conductor DC resistance @ 20°C <93.8O/km
Rated Temperature (°C) -40°C to 70°C
