Cat6a F/FTP Cable – White LSZH – 305m

Name: Cat6a F/FTP Cable – White LSZH – 305m
Brand: FruityCables
SKU: FC/C6A-F-FTP-LSZH-D-WHT-305
Price: 280.60 GBP
Availability: InStock

£280.60 GBP

305m box or reel of Cat6a F/FTP cable with low smoke white LSZH sheath. Designed for structured cabling and professional internal network installations.

FruityCables | Product Code: FC/C6A-F-FTP-LSZH-D-WHT-305

DESCRIPTION

Professional Cat6a F/FTP cabling engineered for high-performance network installations. Delivers up to 1000 Mbps transfer speeds and supports frequencies to 500 MHz across distances up to 90 meters, making it ideal for demanding enterprise and commercial environments.

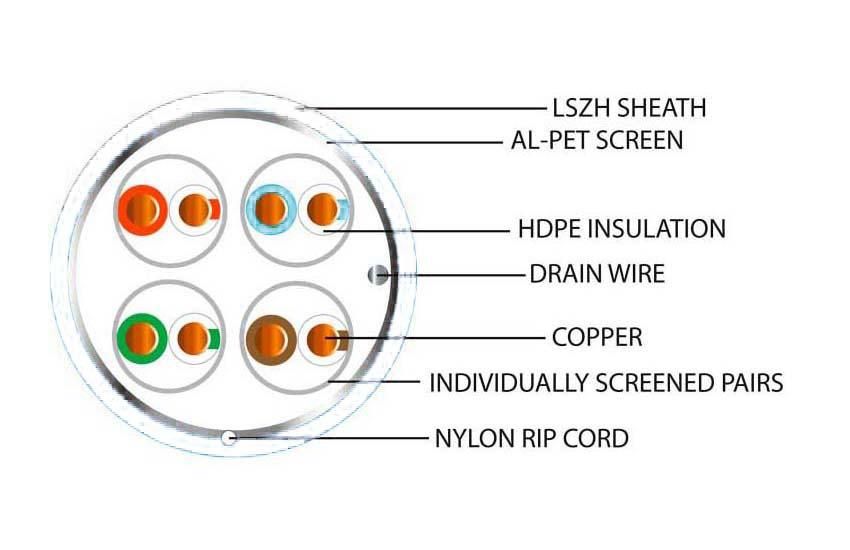

Fully screened construction provides dual protection: electromagnetic interference shielding for reliable signal integrity, plus enhanced security against potential eavesdropping. The foil and twisted pair shielding ensures consistent performance even in electrically noisy installations.

Low smoke zero halogen (LSZH) jacket meets strict fire safety standards for public buildings and shared spaces. In the event of fire, the cable won't release toxic fumes, protecting occupants and meeting building regulations.

Solid core construction offers excellent cost-effectiveness without compromising performance. Available in white and other colours to suit your installation aesthetic. Can be cut to any length required saving
installation time

TECHNICAL SPECS

Technical Specifications

Cable Construction
CPR Dca -s2 -a1 -d2
Conductor Bare Copper
Conductor 2 N/A
Conductor Diameter (mm) 0.565 ±0.010
Overall Diameter (mm) 7.50 ±0.5

Insulation
Insulation HDPE
Insulation Colour Blue/White;Orange/White;Green/White;Brown/White
Insulation Thickness (mm) 0.1
Insulation 2 Thickness (mm) N/A
Outer Insulation N/A
Outer Insulation Diameter (mm) N/A
Outer Insulation Thickness (mm) N/A

Outer/Jacket Specification
Outer Insulation N/A
Outer Jacket LSZH
Outer Jacket Colour White
Inner Jacket N/A
Inner Jacket Colour N/A
Inner Jacket Diameter (mm) N/A
Inner Jacket Thickness (mm) N/A
Jacket LSZH
Overall Colour White
Overall Diameter (mm) 7.50 ±0.50
Jacket Colour White RAL 9003
Jacket Thickness (mm) 0.55 ±0.05
Nylon Rip-Cord White 210D

Electrical Characteristics
Max Conductor DC resistance @ 20°C <93.8O/km
Rated Temperature (°C) -40°C to 70°C
