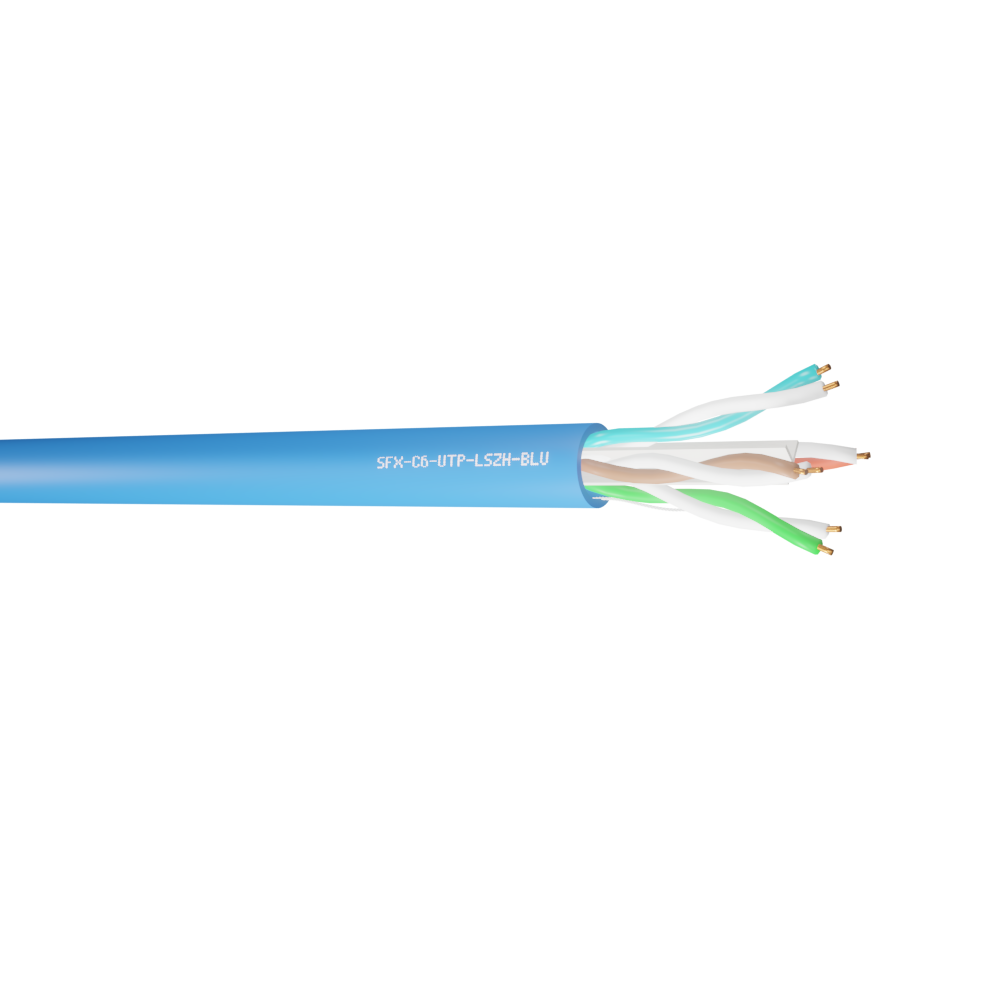

Cat6 UTP Cable – Blue LSZH – 100m

£55.00

Professional-grade Category 6 UTP data cable delivering 1000 Mbps speeds across distances up to 90 metres at 250 MHz frequency. The unscreened construction provides exceptional flexibility and cost efficiency, making it the preferred choice for LAN installations and telecommunications deployments. LSZH (Low Smoke Zero Halogen) insulation ensures compliance with safety standards for public buildings and shared spaces, eliminating toxic fume release in fire scenarios. This blue cable combines thin profile design with robust performance characteristics, available in per-metre lengths to match your exact installation needs.

Product Code: FC-C6-UTP-LSZH-BLU-100m
DESCRIPTION
TECHNICAL SPECS

Technical Specifications

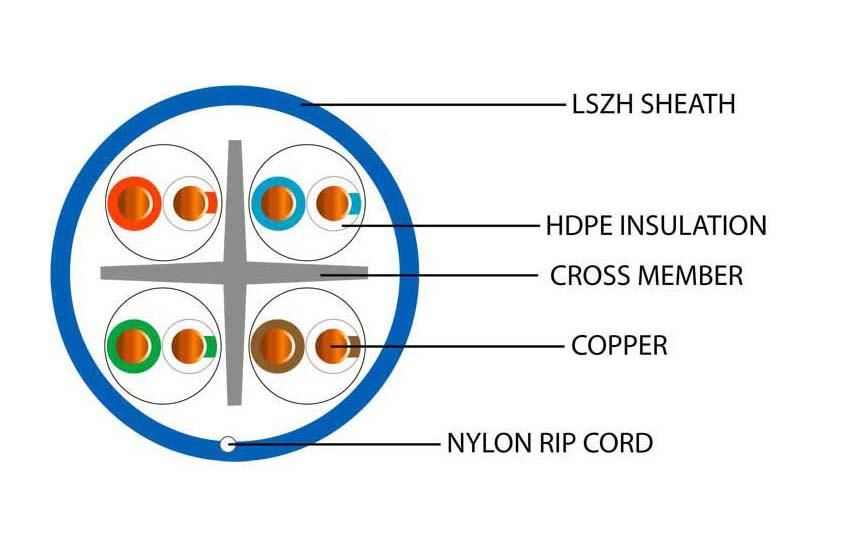

Cable Construction

  • CPR                      Eca
  • Conductor                Bare Copper
  • Conductor Diameter (mm)  0.53 ±0.01
  • Overall Diameter (mm)    6.10 ±0.03

Insulation

  • Insulation              HDPE
  • Insulation Colour       Blue/White/Blue;Orange/White/Orange;Green/White/Green;Brown/White/Brown
  • Insulation Thickness (mm)0.18
  • Outer/Jacket Specification
  • Jacket                  LSZH
  • Overall Colour          Blue
  • Overall Diameter (mm)   6.10 ±0.03
  • Jacket Colour           Blue RAL 5012
  • Jacket Thickness (mm)   0.55 ±0.03
  • Nylon Rip-Cord          White 210D

Electrical Characteristics

  • Max Conductor DC resistance @ 20°C   <95O/km

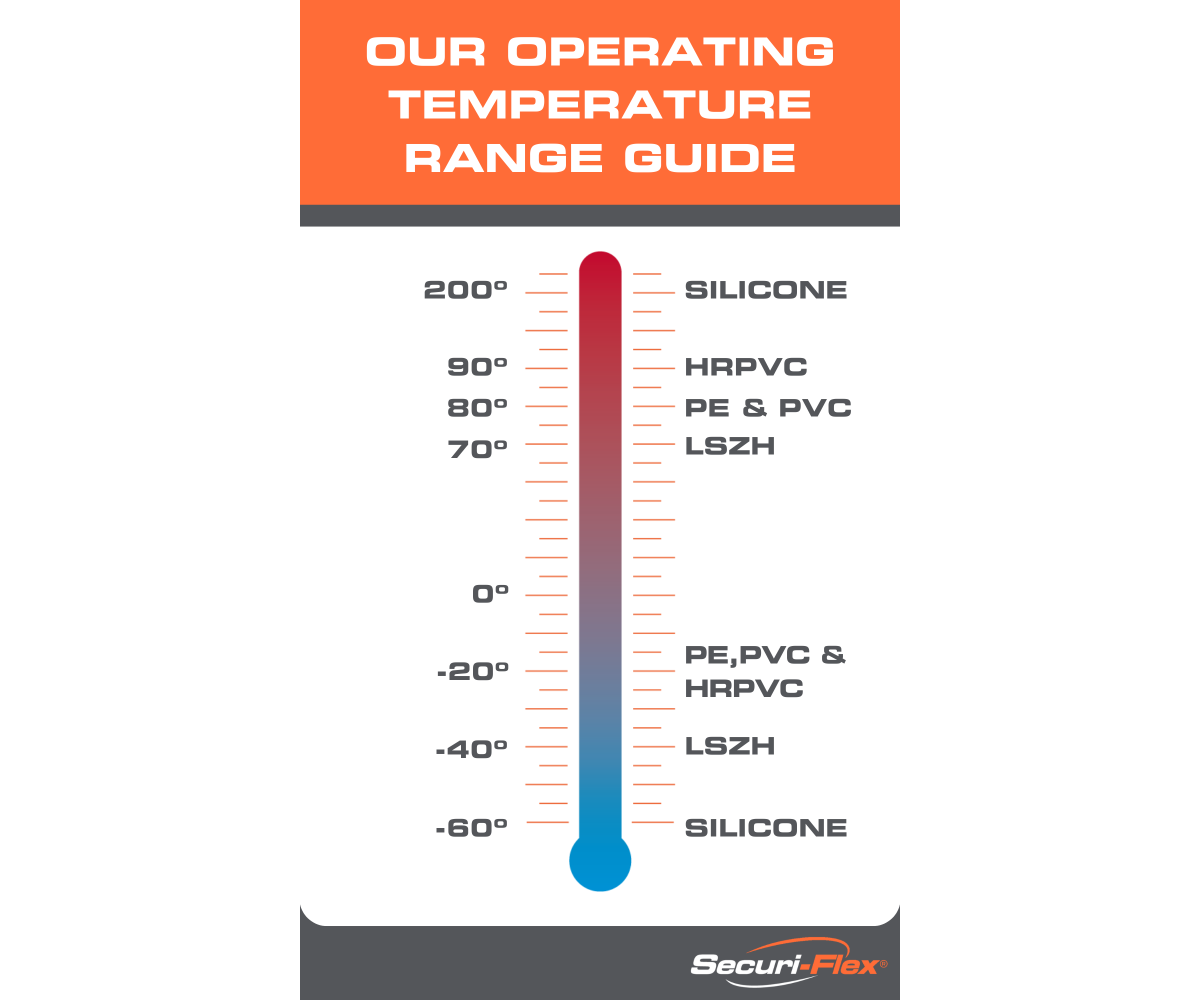

  • Rated Temperature (°C)               -40°C to 70°C
