Cat5e UTP Purple LSZH 305m

£118.95

This Category 5e UTP data cable delivers reliable performance for network installations, supporting transfer speeds up to 100Mbps over distances of up to 90 meters.
Product Code: FC/C5-UTP-LSZH-PUR-305
DESCRIPTION
TECHNICAL SPECS

Technical Specifications

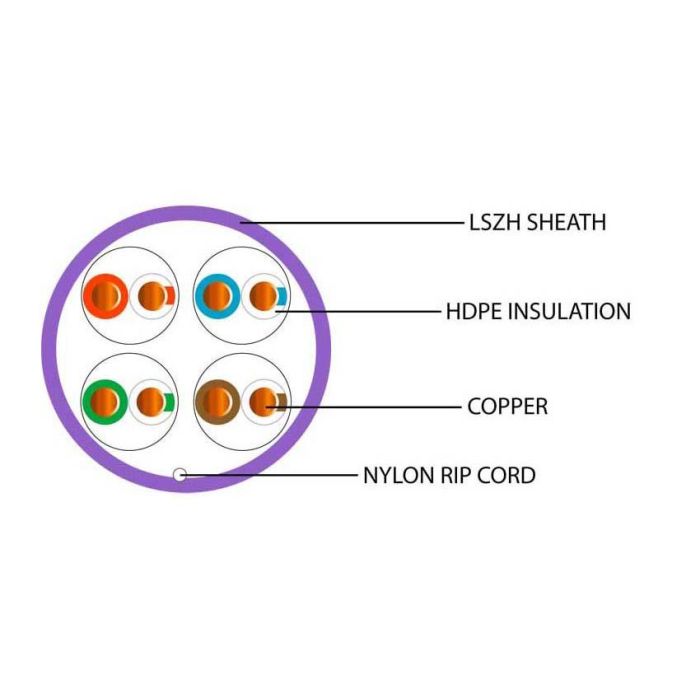

Cable Construction

  • CPR                       Eca
  • Conductor                 Bare Copper
  • Conductor Diameter (mm)   0.47 ±0.01
  • Overall Diameter (mm)     4.80 ±0.03

Insulation

  • Insulation                HDPE
  • Insulation Colour         Blue/White/Blue;Orange/White/Orange;Green/White/Green;Brown/White/Brown
  • Insulation Thickness (mm) 0.18

Outer/Jacket Specification

  • Jacket                    LSZH
  • Overall Colour            Purple
  • Overall Diameter (mm)     4.80 ±0.03
  • Jacket Colour             Purple RAL 4005
  • Jacket Thickness (mm)     0.49 ±0.03
  • Nylon Rip-Cord            White 210D

Electrical Characteristics

  • Max Conductor DC resistance @ 20°C      <115O/km

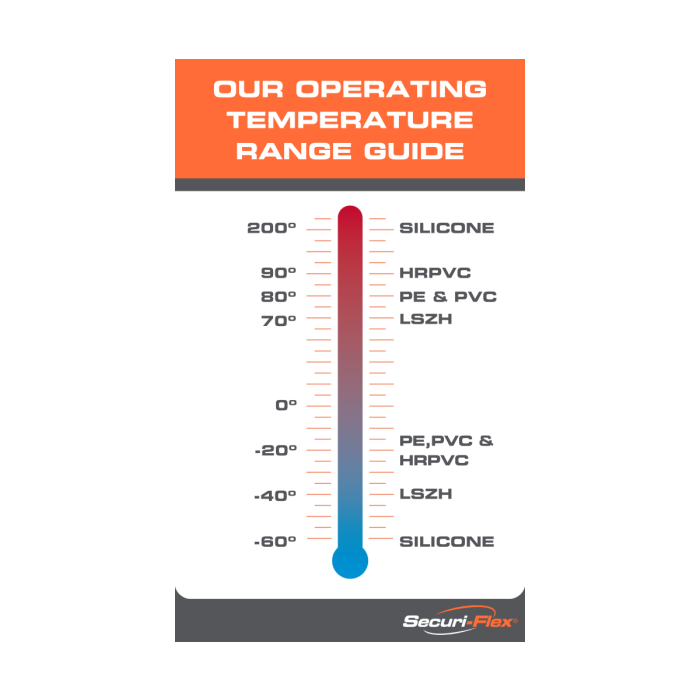

  • Rated Temperature (°C)                  -40°C to 70°C

Discover More

VIEW ALL
FruityCables

Cat5e UTP Purple LSZH 305m

£118.95

This Category 5e UTP data cable delivers reliable performance for network installations, supporting transfer speeds up to 100Mbps over distances of up to 90 meters.

Constructed with unscreened, solid core wiring, it offers excellent flexibility and cost-effectiveness for LAN and telecommunications applications. The Low Smoke Zero Halogen (LSZH) jacket makes it ideal for use in public buildings and enclosed spaces, as it won't release toxic fumes if exposed to fire. Available in vibrant purple, this four-pair cable combines safety, durability, and dependable connectivity for your networking needs.
