CW1308 Internal Telephone Cable

Product Code:

Find your Product

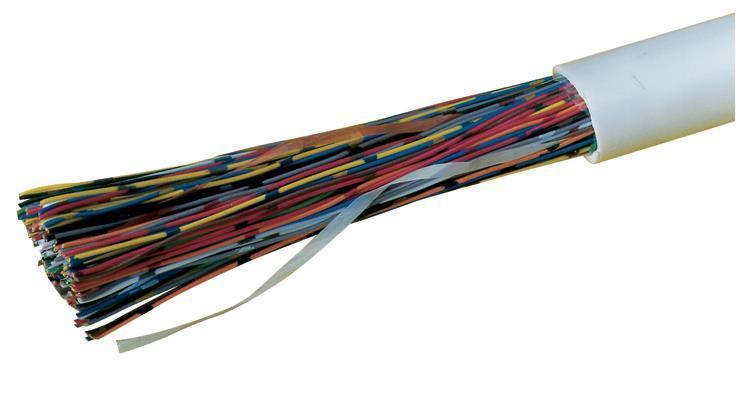

Telephone Cable : CW1308 Internal Grade Low smoke and Fume Cable

CW1308 cable is mainly designed for internal telecom systems and low-level signalling applications. These telephone cables entail solid tinned annealed copper conductors and PVC insulation with white PVC sheath. They are strictly manufactured according to British Telecom specifications.
This cable is a cost-effective solution when used as a signal cable for fixed installation.
The standard cable is available in white colour while other variants are available in black and grey colour with varying sizes. CW1308 LSHF is a low smoke halogen free version of this cable which is also available with us.
These cables are designed for termination in 0.5mm Insulation Displacement Connectors (IDC). Along with BT specification cables, we also offer a wide range of European specification telephone cables.



CW1308 PVC Internal Telephone Cable Features:

  • Max. Conductor Resistance: 97.8 Ohm/km, 12.4 Ohm/km
  • Max. Capacitance Unbalanced: 500pF/km
  • Working Temperature: 0°C to +70°C
  • Insulation, Sheath: PVC
  • Temperature limits: -20°C to +70°C
  • Minimum Bending Radius: 5 x overall diameter
  • Core Identification: E. denotes earth core
