Cat6a U/FTP Cable – Orange PVC – 305m

Name: Cat6a U/FTP Cable – Orange PVC – 305m
Brand: FruityCables
SKU: FC/C6A-UFTP-LSZH-D-ORG-305
Price: 237.90 GBP
Availability: InStock

£237.90 GBP

305m box or reel of Cat6a U/FTP cable with durable orange PVC sheath. Designed for structured cabling and professional internal network installations.

FruityCables | Product Code: FC/C6A-UFTP-LSZH-D-ORG-305

DESCRIPTION

Professional Cat6a U/FTP cabling engineered for high-speed data transmission up to 1000 Mbps at 500 MHz frequencies, reliable across distances up to 90 meters.

Fully screened construction provides electromagnetic interference protection and enhanced security against signal eavesdropping. Built with low smoke zero halogen (LSZH) plastic, this cable meets safety standards for installation in public buildings and commercial spaces, preventing toxic gas emission in fire conditions.

The solid core design delivers cost-effective performance ideal for permanent installations.

Available in vibrant orange PVC finish, this 305-meter bulk spool can be cut to your exact length requirements, streamlining installation workflows and reducing material waste.

Combines improved fire resistance with robust data protection for demanding network environments.

TECHNICAL SPECS

Technical Specifications

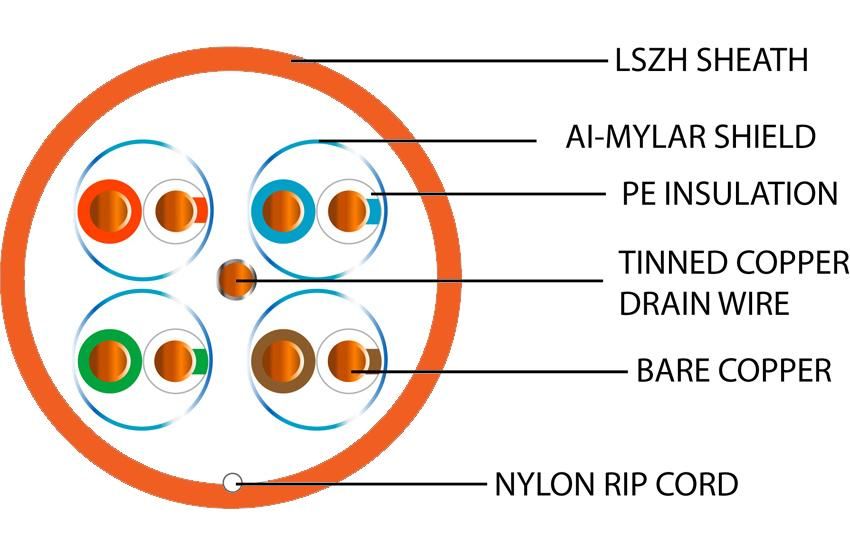

Cable Construction
CPR Dca -s1 -a1 -d2
Conductor Bare Copper
Conductor 2 N/A
Conductor Diameter (mm) 0.565 ±0.005
Overall Diameter (mm) 6.80 ±0.50

Insulation
Insulation PE
Insulation Colour Blue/White;Orange/White;Green/White;Brown/White
Insulation Thickness (mm) 0.36
Insulation 2 Thickness (mm) N/A
Outer Insulation N/A
Outer Insulation Diameter (mm) N/A
Outer Insulation Thickness (mm) N/A

Outer/Jacket Specification
Outer Insulation N/A
Outer Jacket LSZH
Outer Jacket Colour Orange
Inner Jacket N/A
Inner Jacket Colour N/A
Inner Jacket Diameter (mm) N/A
Inner Jacket Thickness (mm) N/A
Jacket LSZH
Overall Colour Orange
Overall Diameter (mm) 6.80 ±0.50
Jacket Colour Orange RAL 2003
Jacket Thickness (mm) 0.50 ±0.05
Nylon Rip-Cord White 210D

Electrical Characteristics
Max Conductor DC resistance @ 20°C <93.8O/km
Rated Temperature (°C) -40°C to 70°C
