Cat6a U/FTP Cable – Purple LSZH – 305m

Regular price £234.85 GBP
305m box or reel of Cat6a U/FTP cable with low smoke purple LSZH sheath. Designed for structured cabling and professional internal network installations.
FruityCables  |  Product Code: FC/C6A-UFTP-LSZH-D-PUR-305
DESCRIPTION

High-performance Cat6a U/FTP cable delivering up to 1000 Mbps transfer speeds and 500 MHz frequency over distances up to 90 meters.

Fully screened construction protects against electromagnetic interference and eavesdropping, making it ideal for secure installations.

Low smoke zero halogen (LSZH) jacket ensures safety in public buildings and enclosed spaces by preventing toxic gas emission in case of fire. The solid core design offers excellent value and reliable performance for permanent installations.

Available in vibrant purple and supplied in a 305-meter spool, this cable can be cut to your exact length requirements, reducing waste and installation time.

Built for durability and compliance with modern networking standards.

TECHNICAL SPECS

Technical Specifications

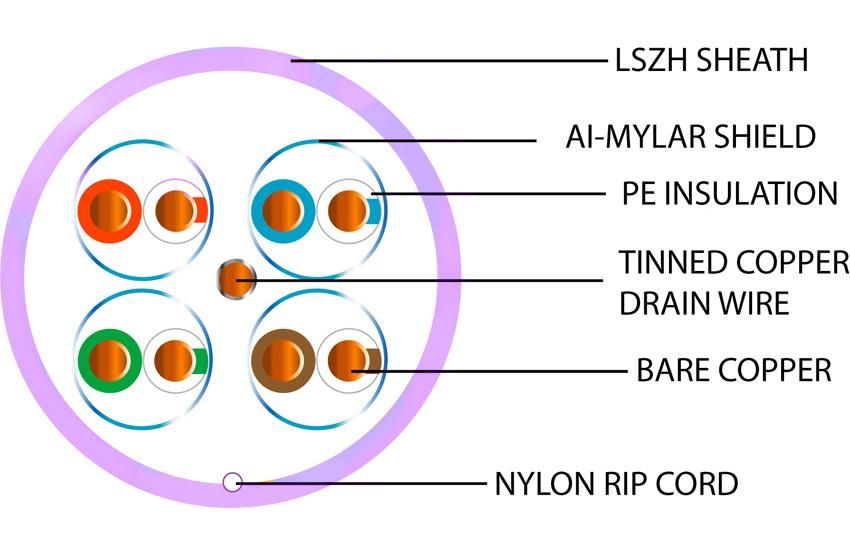

Cable Construction
CPR Dca -s1 -a1 -d2
Conductor Bare Copper
Conductor 2 N/A
Conductor Diameter (mm) 0.565 ±0.005
Overall Diameter (mm) 6.80 ±0.50

Insulation
Insulation PE
Insulation Colour Blue/White;Orange/White;Green/White;Brown/White
Insulation Thickness (mm) 0.36
Insulation 2 Thickness (mm) N/A
Outer Insulation N/A
Outer Insulation Diameter (mm) N/A
Outer Insulation Thickness (mm) N/A

Outer/Jacket Specification
Outer Insulation N/A
Outer Jacket LSZH
Outer Jacket Colour Purple
Inner Jacket N/A
Inner Jacket Colour N/A
Inner Jacket Diameter (mm) N/A
Inner Jacket Thickness (mm) N/A
Jacket LSZH
Overall Colour Purple
Overall Diameter (mm) 6.80 ±0.50
Jacket Colour Purple RAL 4005
Jacket Thickness (mm) 0.50 ±0.05
Nylon Rip-Cord White 210D

Electrical Characteristics
Max Conductor DC resistance @ 20°C <93.8O/km
Rated Temperature (°C) -40°C to 70°C
