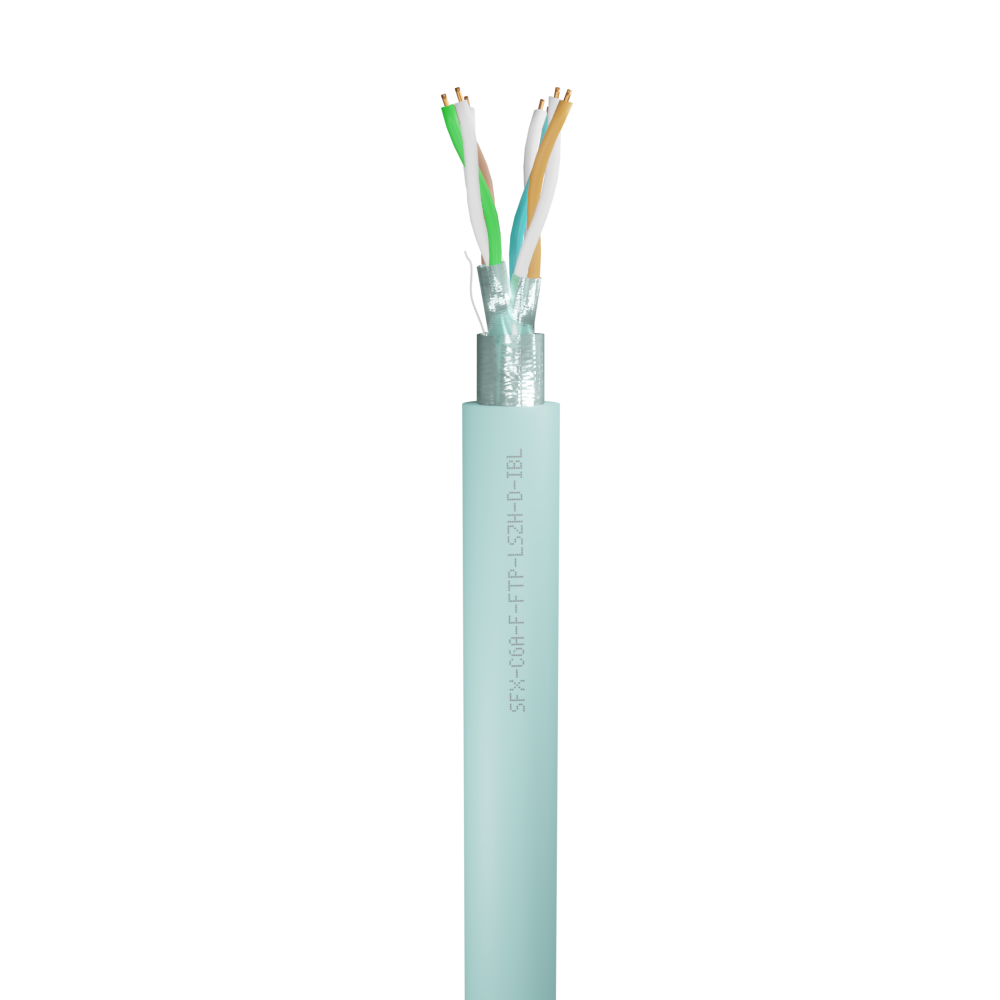

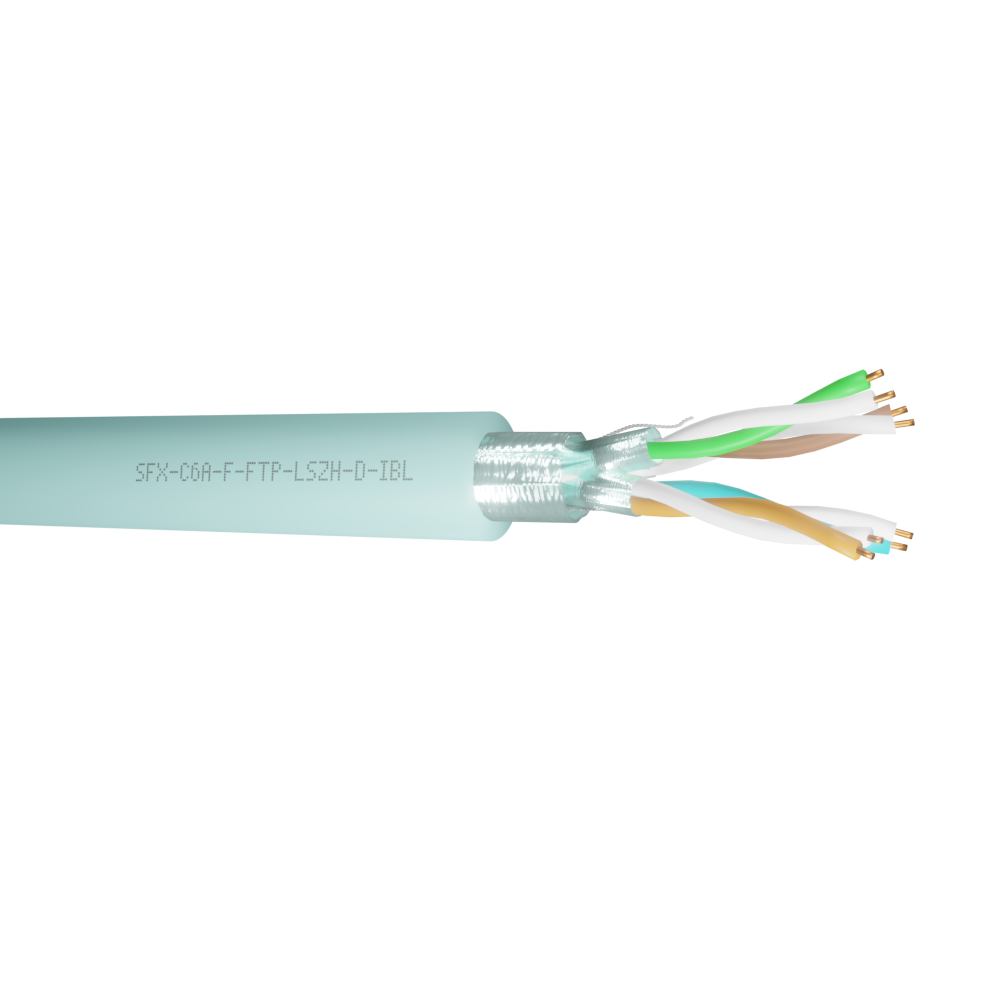

Cat6a F/FTP Cable – Ice Blue LSZH – 305m

Regular price £268.40 GBP
305m box or reel of Cat6a F/FTP cable with low smoke ice blue LSZH sheath. Designed for structured cabling and professional internal network installations.
FruityCables  |  Product Code: FC/C6A-F-FTP-LSZH-D-IBL-305
DESCRIPTION

Professional Cat6a F/FTP cabling engineered for high-performance network installations. Delivers up to 1000 Mbps transfer speeds and supports 500 MHz frequency across distances up to 90 meters, making it ideal for demanding data centre and enterprise environments.

Fully screened construction provides robust protection against electromagnetic interference from RF and power equipment, while also offering enhanced security against signal eavesdropping. The Low Smoke Zero Halogen (LSZH) jacket ensures compliance with building safety regulations — critical for public buildings and enclosed spaces where fire safety is paramount, as it won't release toxic gases if ignited.

Available in ice blue and other colour options to suit your installation aesthetic. Solid core construction delivers excellent value without compromising performance. Cut to any length on-site to minimise waste and streamline installation workflows. Combines superior fire protection with reliable shielding for networks where safety and performance cannot be compromised.

TECHNICAL SPECS

Technical Specifications

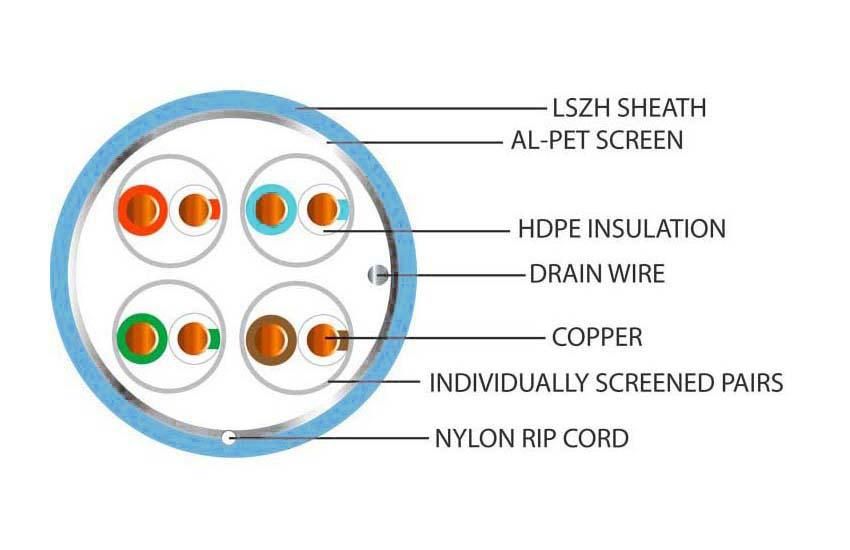

Cable Construction

CPR Dca -s2 -a1 -d2
Conductor Bare Copper
Conductor 2 N/A
Conductor Diameter (mm) 0.565 ±0.010
Overall Diameter (mm) 7.50 ±0.50

Insulation
Insulation HDPE
Insulation Colour Blue/White;Orange/White;Green/White;Brown/White
Insulation Thickness (mm) 0.1
Insulation 2 Thickness (mm) N/A
Outer Insulation N/A
Outer Insulation Diameter (mm) N/A
Outer Insulation Thickness (mm) N/A

Outer/Jacket Specification
Outer Insulation N/A
Outer Jacket LSZH
Outer Jacket Colour Ice Blue
Inner Jacket N/A
Inner Jacket Colour N/A
Inner Jacket Diameter (mm) N/A
Inner Jacket Thickness (mm) N/A
Jacket LSZH
Overall Colour Ice Blue
Overall Diameter (mm) 7.50 ±0.50
Jacket Colour Ice Blue RAL 6027
Jacket Thickness (mm) 0.55 ±0.05
Nylon Rip-Cord White 210D

Electrical Characteristics
Max Conductor DC resistance @ 20°C <93.8O/km
Rated Temperature (°C) -40°C to 70°C
